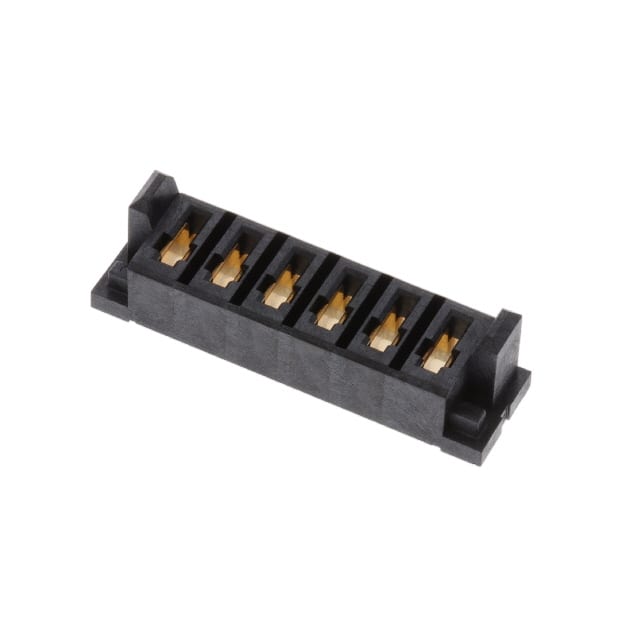

MPS-06-7.70-01-L-V Samtec MPS-06-7.70-01-L-V is a vertical mini-power socket with 6 positions, 5.00mm pitch, through-hole mounting, and gold plated contacts. It is rated for 28A and 575VAC/813VDC.
Mfr Part #:

MPS-06-7.70-01-L-V

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec MPS-06-7.70-01-L-V is a vertical mini-power socket with 6 positions, 5.00mm pitch, through-hole mounting, and gold plated contacts. It is rated for 28A and 575VAC/813VDC.
✓ Total Stock: 27 pcs
$ Price Range: $3.53 - $6.11

MPS-06-7.70-01-L-V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
27 pcs
On Request
27 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MPS-06-7.70-01-L-V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clearance
Color
Connector Type
Contact Material
Contact Plating
Creepage
Current Rating
Features
Halogen Free
Insulator Material
Lead-Free Solderable
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Package Type
Pitch
Standard Package Quantity
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

MPS-06-7.70-01-L-V Description

Short technical summary and product information.

The Samtec MPS-06-7.70-01-L-V is a 6-position receptacle from the PowerStrip/30 series, designed for high-power board-to-board and wire-to-board applications. It features female blade sockets on a 5.00mm pitch, providing reliable connectivity for demanding power distribution systems.



Electrical ratings include 28A maximum current per pin (1 pin powered) and a voltage rating of 575VAC/813VDC, based on manufacturer specifications. The contacts are made of copper alloy with gold over 50 µ" nickel plating, ensuring low contact resistance and corrosion resistance. The black liquid crystal polymer (LCP) insulator supports operating temperatures from -55°C to +125°C (gold plating).



The connector is mounted via through-hole solder termination, with a board guide feature to aid alignment. Packaging is in trays with a standard quantity of 60 pieces per package. The part is lead-free solderable per the datasheet.

MPS-06-7.70-01-L-V Quick Information

Product Type: Blade Type Power Connector Receptacle
Series: MPS
Canonical Name: Samtec PowerStrip/30 Series, MPS-06-7.70-01-L-V, 6 Position Receptacle, Female Blade Sockets, Through Hole, Solder, 5.00mm Pitch, Gold Plating
Subcategory: Power Connectors

MPS-06-7.70-01-L-V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable

MPS-06-7.70-01-L-V Estimated Pricing

Qty Low High
1+ $6.11 $6.11
540+ $4.42 $4.42
1,020+ $4.17 $4.17
2,520+ $3.53 $3.53

Estimated market price range - modelled values for guidance only, not live distributor offers.

MPS-06-7.70-01-L-V Features

  • 6 position blade socket with 5.00mm pitch.
  • Rated for 28A max current per pin.
  • Rated for 575VAC/813VDC operation.
  • Gold over nickel contact plating.
  • Through-hole solder termination.

MPS-06-7.70-01-L-V Applications

  • Suitable for high-power board-to-board connections.
  • Designed for power distribution in industrial equipment.
  • Used in power supply and motor control systems.
  • Ideal for wire-to-board power applications.

MPS-06-7.70-01-L-V FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the MPS-06-7.70-01-L-V have?

It has 6 positions in a single row.

What is the pitch of this connector?

The pitch is 5.00mm (0.197 inches).

What is the current rating of the MPS-06-7.70-01-L-V?

The maximum current rating is 28A per pin (1 pin powered).

What is the voltage rating of this connector?

The voltage rating is 575 VAC max and 813 VDC max per the manufacturer page.

What is the mounting type for this part?

It is a through-hole mounting connector with solder termination.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C for gold plated contacts.

What contact material and plating does this connector use?

Contacts are copper alloy with gold over 50 µ" nickel plating.
