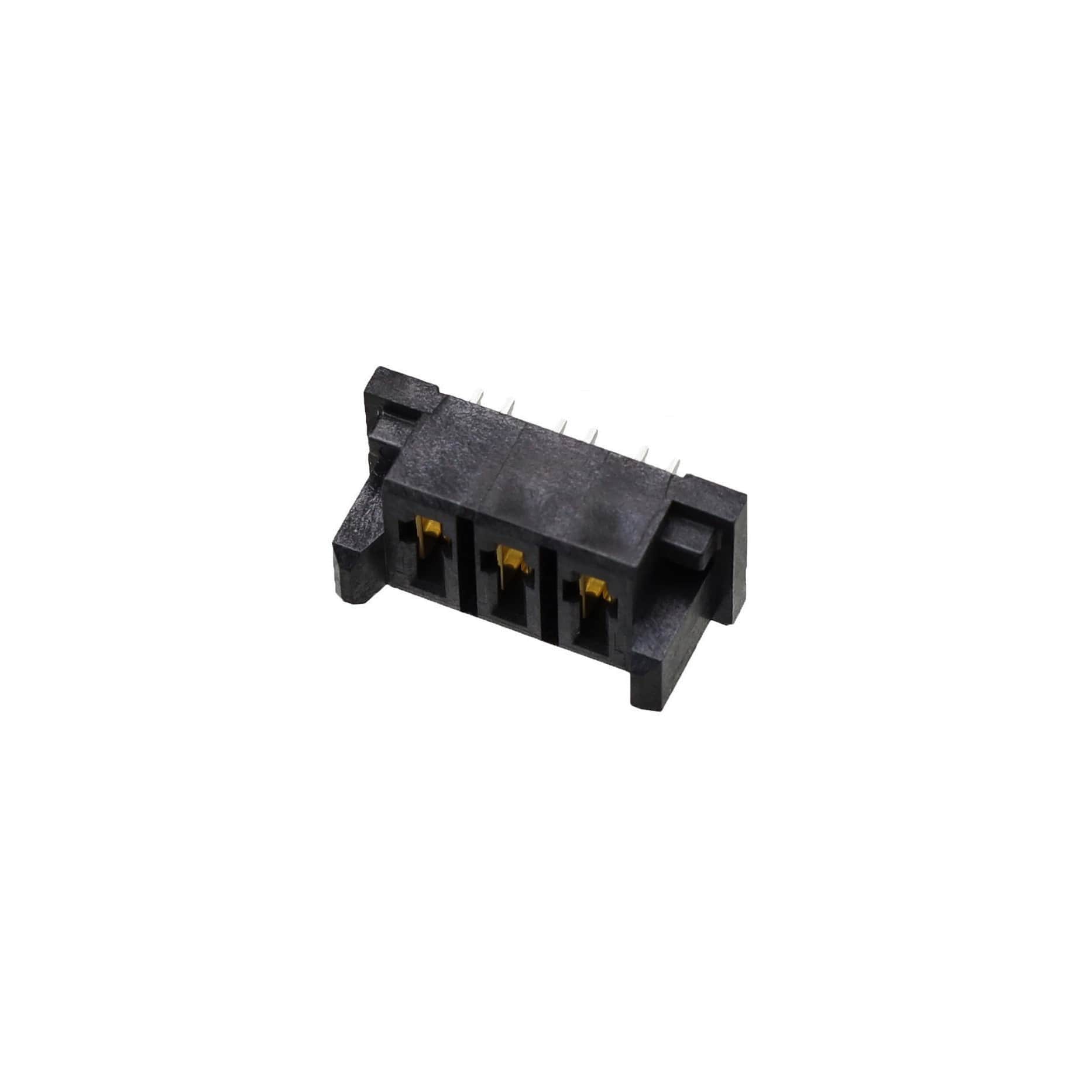

MPS-03-7.70-01-L-V Samtec MPS-03-7.70-01-L-V is a 3-position, 5.00mm pitch PowerStrip/30A dual leaf socket strip with through hole solder termination, rated for 28A max and 575VAC/813VDC.
Mfr Part #:

MPS-03-7.70-01-L-V

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec MPS-03-7.70-01-L-V is a 3-position, 5.00mm pitch PowerStrip/30A dual leaf socket strip with through hole solder termination, rated for 28A max and 575VAC/813VDC.
✓ Total Stock: 149 pcs
$ Price Range: $3.84 - $4.45

MPS-03-7.70-01-L-V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
149 pcs
On Request
149 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MPS-03-7.70-01-L-V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Current Rating (Max)
Features
Halogen Free
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
SVHC Present
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

MPS-03-7.70-01-L-V Description

Short technical summary and product information.

The Samtec MPS-03-7.70-01-L-V is a 3-position receptacle with female blade sockets, part of the PowerStrip/30 series. It features a 5.00mm pitch and is designed for high-power board-to-board or wire-to-board connections. The connector is rated for a maximum current of 28A and a voltage rating of 575VAC / 813VDC.



This through-hole component uses solder termination and includes a board guide feature for reliable alignment during assembly. The housing is black and the connector is supplied in a vertical orientation. Packaging is in trays with a standard quantity of 110 pieces per tray.



Typical applications include power distribution in industrial equipment, power supply designs, and other high-current interconnect systems. The dual leaf contact design ensures robust electrical performance and durability.

MPS-03-7.70-01-L-V Quick Information

Product Type: Blade Type Power Connector Assembly
Series: MPS
Canonical Name: 5.00mm PowerStrip/30A Dual Leaf Socket Strip, 3 Positions, Through Hole, Solder Termination
Subcategory: Power Connector Assemblies

MPS-03-7.70-01-L-V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

MPS-03-7.70-01-L-V Estimated Pricing

Qty Low High
1+ $4.45 $4.45
550+ $3.84 $3.84

Estimated market price range - modelled values for guidance only, not live distributor offers.

MPS-03-7.70-01-L-V Features

  • 3-position dual leaf socket strip.
  • 5.00mm pitch for high-power applications.
  • Rated for 28A max current.
  • Rated for 575VAC/813VDC.
  • Through hole solder termination with board guide.

MPS-03-7.70-01-L-V Applications

  • Ideal for power distribution in industrial equipment.
  • Used in board-to-board power connections.
  • Suitable for high-current power supply designs.

MPS-03-7.70-01-L-V FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the MPS-03-7.70-01-L-V have?

It has 3 positions.

What is the pitch of this connector?

The pitch is 5.00mm (0.197 inches).

What is the maximum current rating?

The maximum current rating is 28A.

What is the voltage rating?

The voltage rating is 575VAC / 813VDC.

What is the mounting type?

Through hole mounting with solder termination.

What color is the connector housing?

The housing is black.

Does the connector have any special features?

Yes, it includes a board guide feature.
