| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage (CH4) | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

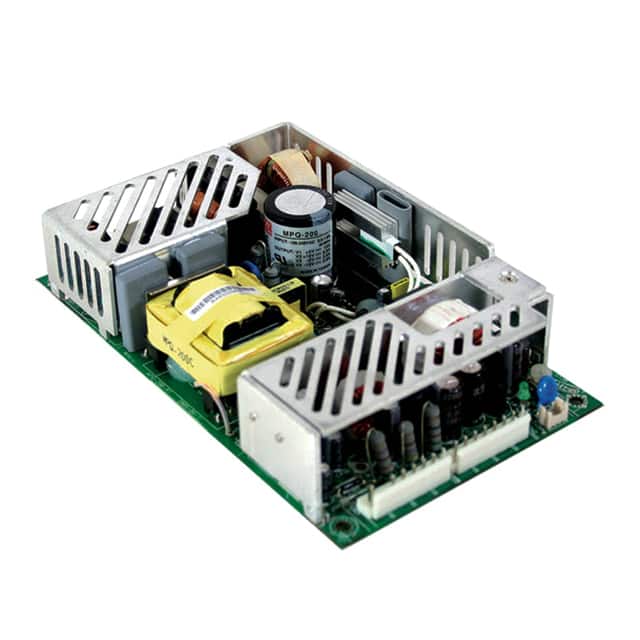

The Mean Well USA MPQ-200D is a 139W open frame AC-DC converter designed for medical and industrial applications. Operating from a universal AC input range of 90 to 264 VAC (47-63Hz), it delivers four regulated outputs: 5V, 24V, +12V, and -12V. With power factor correction (≥0.95 at 230VAC) and efficiency up to 79%, the converter provides reliable power in a compact form factor.
Built-in protections include overload (120-160% rated load, hiccup mode), over voltage on channel 1 (115-135%), and over temperature (95°C on heatsink with auto recovery). Remote on/off control and a power good/fail TTL signal facilitate system integration. The unit supports forced air cooling for extended power output up to 171W.
Housed in a chassis-mount open-frame package measuring 177.8 x 107.2 x 35.6 mm, the MPQ-200D operates over -20°C to +70°C with derating. Its medical safety rating of 2xMOPP between primary and secondary ensures isolation for patient-connected equipment.
Compliance with CB, CE, cURus, and TUV standards (including EN55011 Class B and EN61000 series) makes the MPQ-200D suitable for worldwide medical and industrial installations. RoHS3 and REACH compliant (unverified).
90~264 VAC, 47-63Hz (also 127~370 VDC).
Open frame, chassis mount.
-20°C to 70°C with derating.
RoHS3 compliant (unverified).
Four outputs: 5V, 24V, +12V, and -12V.
Overload (120-160%, hiccup), over voltage on CH1 (115-135%, latch), over temperature (95°C on heatsink, auto recovery).
Yes, it meets medical safety requirements with 2xMOPP isolation between primary and secondary.
