| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,450 pcs
|
7450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,694 pcs
|
4694 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,679 pcs
|
4679 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,496 pcs
|
4496 pcs | On Request | 1 | On Request | On Request | 1903+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |
The MPM3820GQV-Z is a Non-Isolated Point-of-Load (PoL) DC-DC converter module from Monolithic Power Systems. It delivers up to 2A of output current with an adjustable output voltage range from 0.6V to 6V. The module operates from a minimum input voltage of 2.7V.
Protection features include overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO). Control features include an enable pin with active high logic. The device is designed for commercial ITE (Information Technology Equipment) applications.

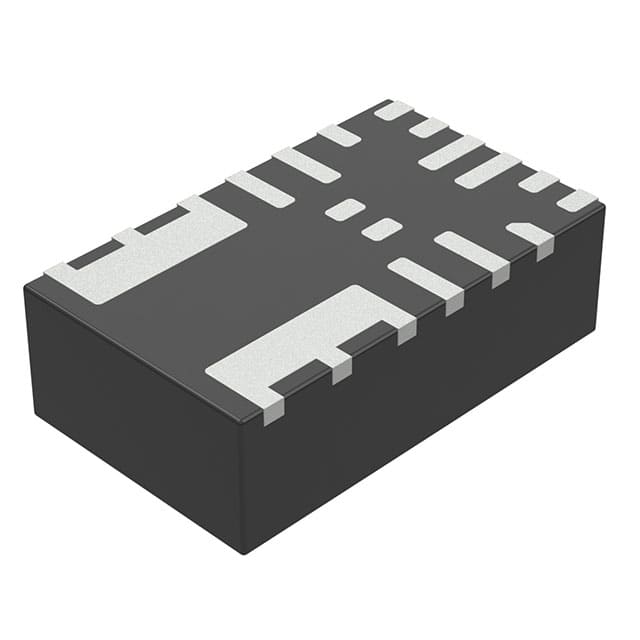

The module is housed in a 20-PowerLFQFN surface mount package with a supplier device package of 20-QFN measuring 3x5mm. Dimensions are 5.0mm length, 3.0mm width, and 1.6mm height. Operating temperature range is -40°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.46 | $2.46 |
| 10+ | $1.83 | $1.83 |
| 25+ | $1.67 | $1.67 |
| 100+ | $1.49 | $1.49 |
| 250+ | $1.41 | $1.41 |
| 500+ | $1.37 | $1.37 |
| 1,000+ | $1.35 | $1.35 |
| 2,500+ | $1.26 | $1.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output current is 2A.
The output voltage range is 0.6V to 6V.
The minimum input voltage is 2.7V.
It includes overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO).
The operating temperature range is -40°C to 125°C.
It is available in a 20-PowerLFQFN surface mount package (20-QFN 3x5mm).
RoHS status is listed as RoHS3 Compliant, but this is unverified.
