| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
464 pcs
|
464 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
464 pcs
|
464 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Output | |
| Width |

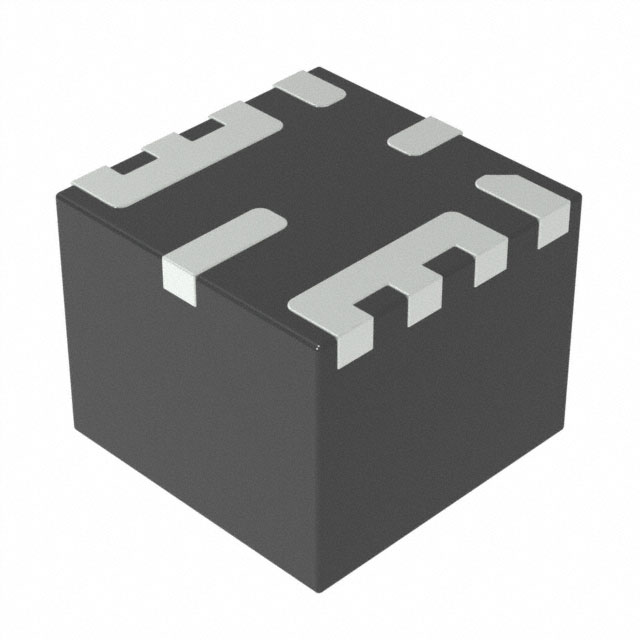

The MPM3811GG-P is a non-isolated point-of-load (PoL) DC-DC converter module designed by Monolithic Power Systems. It provides a single regulated output voltage adjustable from 0.6V to 1.2V with a maximum output current of 1A. The module achieves up to 91% efficiency, making it suitable for power-sensitive applications.
This converter integrates protection features including remote on/off, over-current protection (OCP), over-temperature protection (OTP), short-circuit protection (SCP), and under-voltage lockout (UVLO). It is designed for commercial ITE (Information Technology Equipment) applications.
The device is housed in a compact 10-PowerLFQFN module with a 2x2mm footprint and a height of 1.6mm, enabling surface-mount assembly on space-constrained PCBs. It operates over a wide temperature range of -40°C to 125°C, ensuring reliability in harsh environments.
The input voltage minimum is 2.3V (maximum not specified in available data). The module is RoHS3 compliant, MSL level 1, and REACH unaffected (compliance statuses are unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.40 | $2.40 |
| 10+ | $1.78 | $1.78 |
| 25+ | $1.62 | $1.62 |
| 100+ | $1.45 | $1.45 |
| 250+ | $1.37 | $1.37 |
| 500+ | $1.32 | $1.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is adjustable from 0.6V to 1.2V.
The module can deliver up to 1A.
The typical efficiency is 91%.
The minimum input voltage is 2.3V.
It is housed in a 10-PowerLFQFN module with dimensions 2x2mm.
The operating temperature range is -40°C to 125°C.
The part is indicated as RoHS3 compliant, but this status has not been verified from an official source.
