| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,430 pcs
|
12430 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7,923 pcs
|
7923 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,005 pcs
|
2005 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |
The MPM3804GG-Z is a non-isolated point-of-load (PoL) DC-DC converter module manufactured by Monolithic Power Systems. It operates from a minimum input voltage of 2.3V and provides a single adjustable output with a maximum current of 600mA. The module achieves a typical efficiency of 91%, making it suitable for power-sensitive commercial ITE applications.

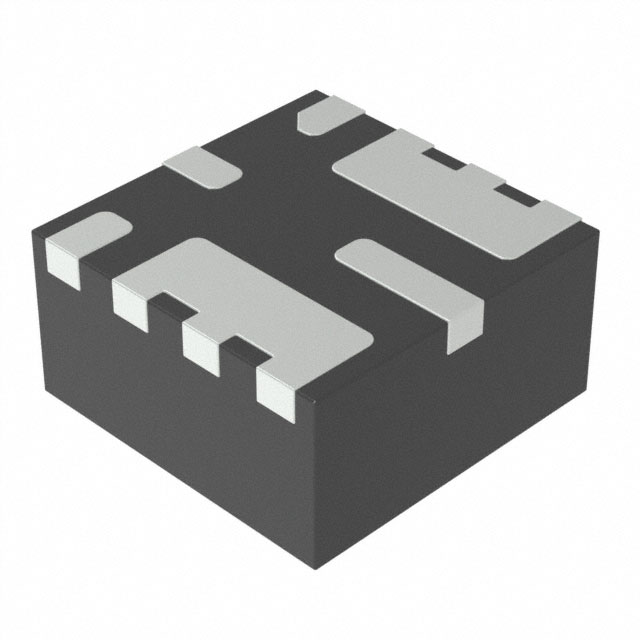

The device is housed in a compact 10-PowerVFQFN module with a 2.0mm x 2.0mm x 1.0mm footprint, enabling dense board layouts. It features surface mount packaging with a supplier device package of 10-QFN (2x2). The operating junction temperature range spans -40°C to 125°C, supporting use in a wide variety of environments.
As a non-isolated PoL module, the MPM3804GG-Z is designed for local voltage regulation close to the load, minimizing distribution losses. The adjustable output feature allows designers to set the output voltage within the module's capability using external resistors.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.80 | $1.80 |
| 10+ | $1.32 | $1.32 |
| 25+ | $1.20 | $1.20 |
| 100+ | $1.07 | $1.07 |
| 250+ | $1.01 | $1.01 |
| 500+ | $0.97 | $0.97 |
| 1,000+ | $0.96 | $0.96 |
| 5,000+ | $0.89 | $0.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output current is 600mA.
The typical efficiency is 91%.
The operating junction temperature range is -40°C to 125°C.
It comes in a 10-PowerVFQFN surface mount module with a supplier device package of 10-QFN (2x2).
The part is listed as RoHS3 Compliant, though this is unverified.
