| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,669 pcs
|
1669 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Output | |
| Width |

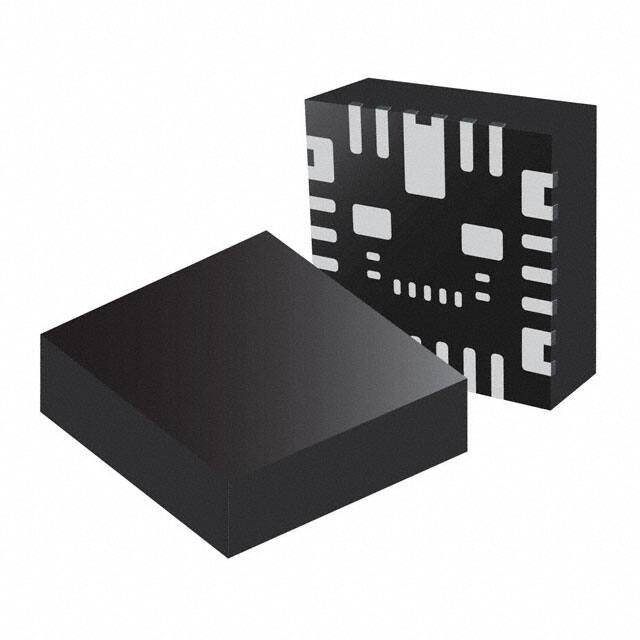

The MPM3683GQN-7 is a non-isolated point-of-load (PoL) DC-DC converter module from Monolithic Power Systems. It delivers up to 8A of output current with an adjustable output voltage range of 0.6V to 5.5V. The module operates from a minimum input voltage of 2.7V and is designed for commercial ITE applications. It is available in a compact 28-PowerBQFN surface mount package measuring 7.0mm x 7.0mm x 4.0mm, with a 28-QFN (7x7) supplier device package. The module features overcurrent protection (OCP), overtemperature protection (OTP), overvoltage protection (OVP), and undervoltage lockout (UVLO). It supports an operating temperature range of -40°C to 125°C, making it suitable for a wide range of environments. The module is RoHS3 compliant and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $8.53 | $8.53 |
| 10+ | $6.70 | $6.70 |
| 25+ | $6.20 | $6.20 |
| 100+ | $5.76 | $5.76 |
| 250+ | $5.49 | $5.49 |
| 500+ | $5.35 | $5.35 |
| 1,000+ | $5.26 | $5.26 |
| 2,080+ | $5.23 | $5.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.6V to 5.5V.
8A.
-40°C to 125°C.
28-PowerBQFN module with supplier device package 28-QFN (7x7).
Overcurrent protection (OCP), overtemperature protection (OTP), overvoltage protection (OVP), and undervoltage lockout (UVLO).
Yes, it is listed as RoHS3 compliant.
2.7V.
