| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

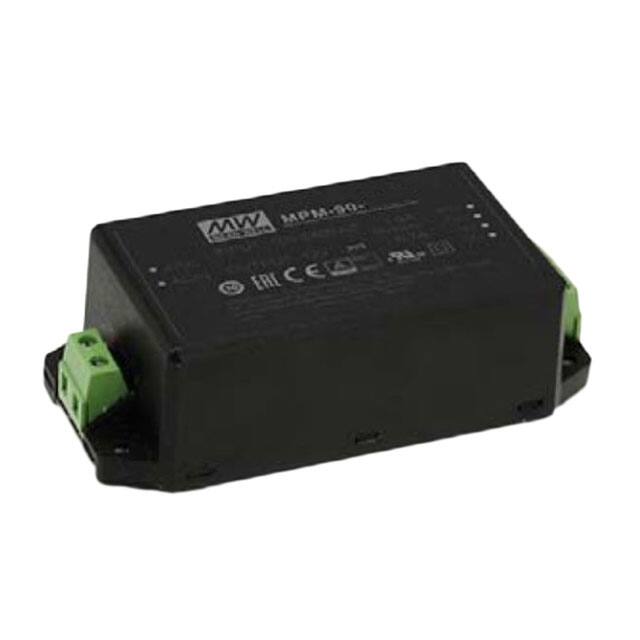

The Mean Well USA MPM-90-24ST is a 90-watt enclosed AC/DC power supply designed for applications requiring reliable power conversion. It provides a single 24V output at 3.75A, with a peak power capability of 99W under forced air conditions. The converter boasts a high efficiency of 93% and operates within a wide input voltage range of 80-264VAC, making it suitable for international markets.
Designed for ease of installation, this unit features a chassis mount type and screw terminals. It operates within a temperature range of -30°C to 80°C, with derating applied at higher temperatures. The MPM-90-24ST is suitable for applications including household appliances and medical equipment, offering 4kV isolation voltage.
Key specifications include its 90W rated power, 24V output voltage, and 3.75A rated current. The dimensions are 109.0mm in length, 52.0mm in width, and 33.5mm in height. It is built with an enclosed type for protection and durability.
The MPM-90-24ST provides a single 24V output at 3.75A.
The operating temperature range is -30°C to 80°C with derating.
The input voltage range is 80 to 264VAC.
The efficiency is 93%.
The power rating is 90W (99W with forced air).
The mounting type is chassis mount.
