| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

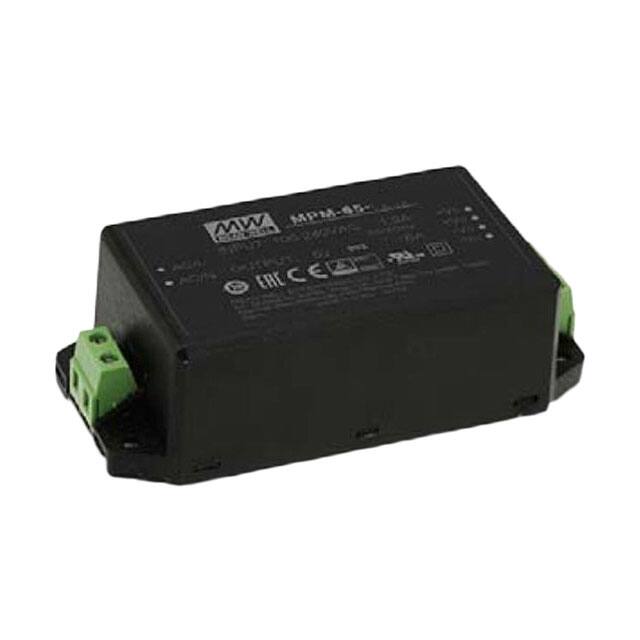

The Mean Well USA MPM-65-5ST is an enclosed AC/DC power supply converter with a power rating of 50W, capable of delivering 55W with forced air. It features a single output and operates at 5V with a current capacity of 10A. The converter boasts an efficiency of 86.5% and is designed for chassis mounting.
With a wide operating temperature range from -30°C to 80°C (with derating), this unit is suitable for demanding environments. Its dimensions are 109.0mm in length, 52.0mm in width, and 33.5mm in height. The MPM-65-5ST is approved by CB, CE, cURus, EAC, and TUV, indicating compliance with various international safety and performance standards. It is suitable for applications in household appliances and medical devices.
This power supply meets RoHS3 compliance standards and has an MSL rating of 1, indicating unlimited shelf life under recommended storage conditions. REACH status is unaffected.
The operating voltage is 4 kV.
The operating temperature range is -30°C to 80°C with derating.
The efficiency is 86.5%.
The output current is 10 A.
It has 1 output.
The power rating is 50 W (55 W with forced air).
It is approved by CB, CE, cURus, EAC, and TUV.
