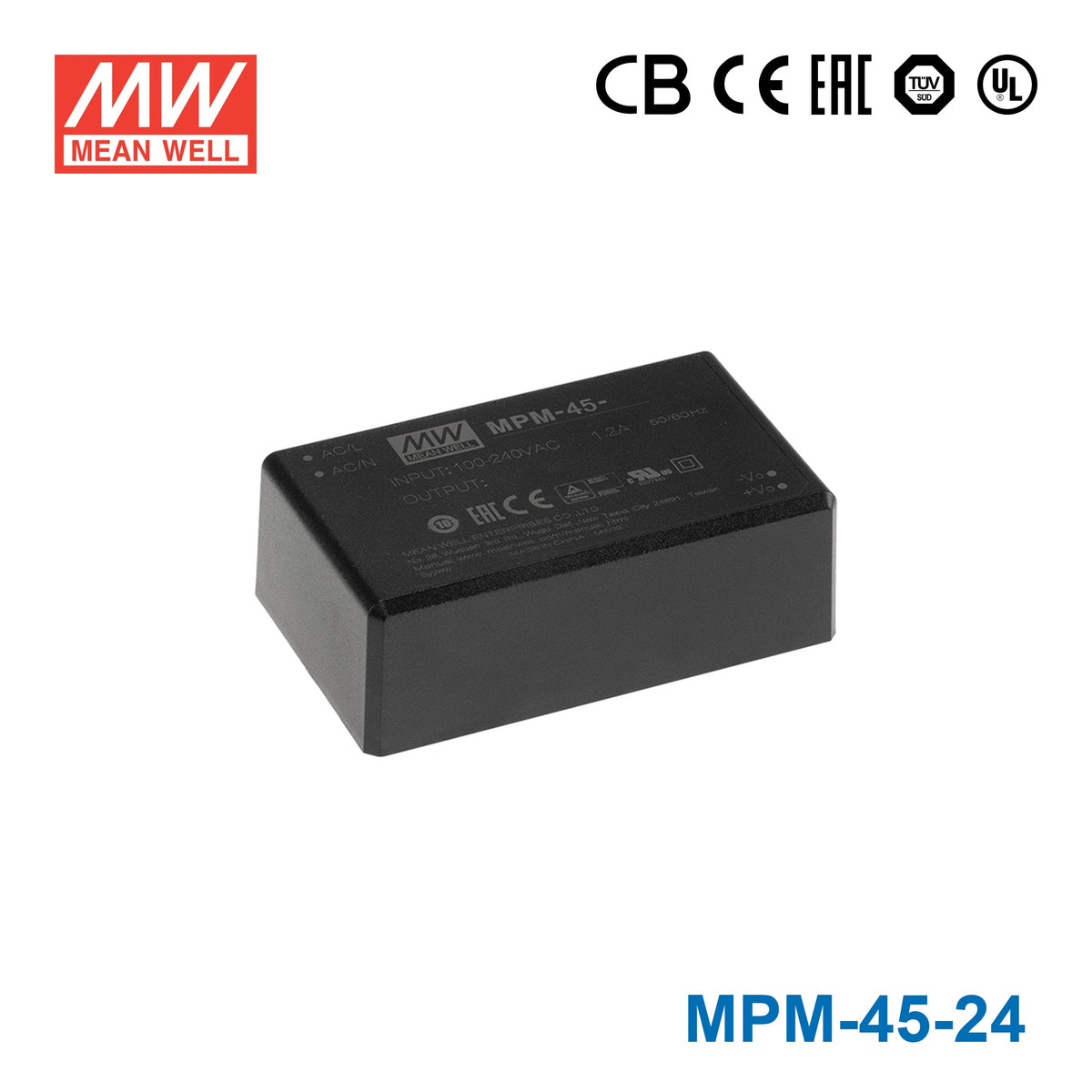

The Mean Well MPM-45-24 is an open-frame AC DC power supply designed for various applications. It delivers a rated output of 24V at 1.88A, providing a total power of 45.1W. The input voltage range is wide, accepting 80-264VAC and 113-370VDC, making it suitable for global use.
This power supply operates efficiently with up to 92.5% efficiency. It is designed to function reliably within an operating temperature range of -30°C to +80°C, with derating applied at higher temperatures. The unit features a single output.
Mechanically, the MPM-45-24 has dimensions of 87.0mm x 52.0mm x 29.5mm (3.43" L x 2.05" W x 1.16" H). It is designed for through-hole mounting and comes in a 4-DIP module package.
Safety certifications include CB, CE, cURus, EAC, and TUV, indicating compliance with various international standards. The RoHS status is RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
The output voltage is 24V.
The rated output current is 1.88A.
The power rating is 45.1W.
The input voltage range is 80-264VAC and 113-370VDC.
The operating temperature range is -30°C to +80°C.
It comes in a 4-DIP module package.
It is designed for through-hole mounting.
