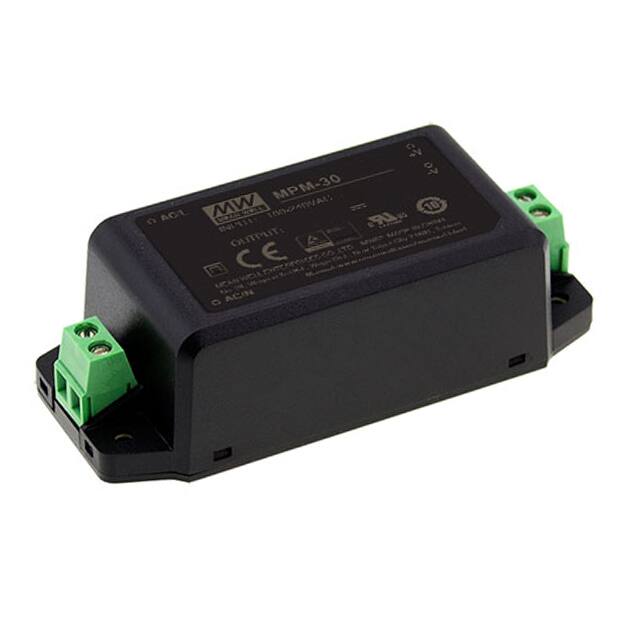

The Mean Well USA MPM-30-15ST is a 30W high-density encapsulated AC/DC converter module delivering a regulated 15V output at 2A. It operates from a universal input of 80 to 264 VAC and achieves up to 89% efficiency with a no-load power consumption of less than 0.075W. Designed for medical applications, it provides 2xMOPP isolation with 4kV input-to-output isolation and ultra-low leakage current below 80µA, meeting IEC/EN 60601-1 and ANSI/AAMI ES60601-1 standards. The converter is housed in a compact encapsulated package measuring 90.9mm x 39.4mm x 28.4mm and supports chassis mounting with screw terminal connections. It is suitable for BF (patient contact) type medical devices, portable medical equipment, and mobile clinical workstations. The series also offers PCB mounting style (blank) and screw terminal style (ST) models.
The output voltage is 15V and the output current is 2A, providing 30W of power.
The input voltage range is 80 to 264 VAC.
The operating temperature range is -40°C to 85°C with derating.
The part is listed as RoHS3 Compliant, but this is unverified.
It has 2xMOPP isolation, 4kV isolation voltage, and approvals include CB, CE, cURus, TUV.
The efficiency is 89%.
It uses chassis mount with screw terminal connections.
