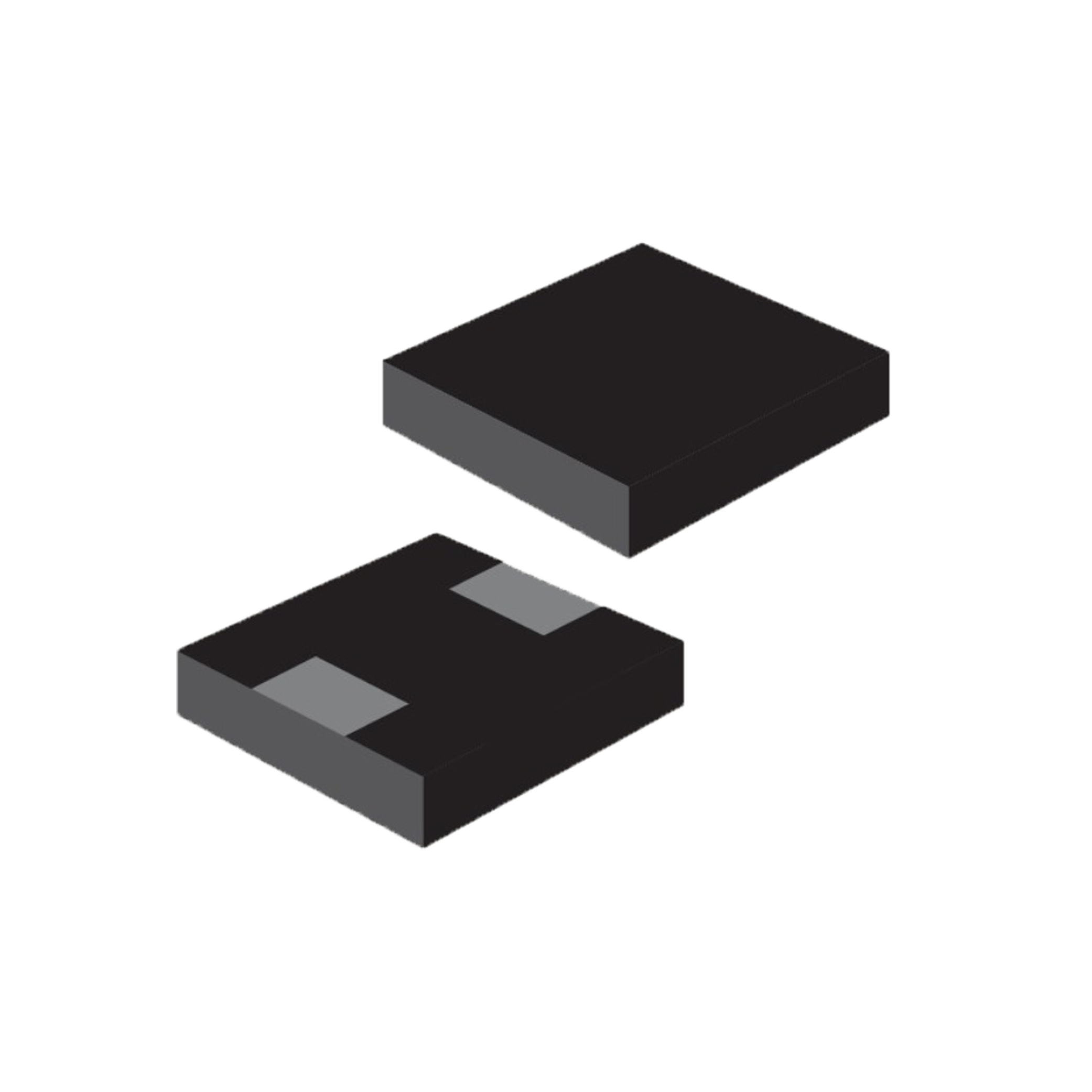

MPI4040R4-100-R The ECS Inc. MPI4040R4-100-R is a power inductor with a 10 µH inductance and a 2.6A saturation current. It is rated AEC-Q200 and comes in a 4.45mm x 4.06mm package.
Mfr Part #:

MPI4040R4-100-R

Available from 1 distributors
Mfr Name: ECS Inc.
ECS Inc.
The ECS Inc. MPI4040R4-100-R is a power inductor with a 10 µH inductance and a 2.6A saturation current. It is rated AEC-Q200 and comes in a 4.45mm x 4.06mm package.
✓ Total Stock: 60 pcs
$ Price Range: $0.51

MPI4040R4-100-R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
60 pcs
On Request
60 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MPI4040R4-100-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
DC Resistance (DCR)
Inductance
Industrial Grade
Medical Grade
Military Grade
Operating Temperature
Storage Temperature
Tape & Reel
Tolerance
View Similar Products (0)

MPI4040R4-100-R Description

Short technical summary and product information.

The ECS Inc. MPI4040R4-100-R is a power inductor designed for demanding applications. It features a nominal inductance of 10 µH and a DC resistance of 148 mΩ. The saturation current (Isat) is rated at 2.6A, with a tolerance of ±20%.



This inductor operates within a wide temperature range of -55°C to 125°C, making it suitable for various environmental conditions. Its compact package size of 4.45mm x 4.06mm allows for efficient use of board space.



The MPI4040R4-100-R is AEC-Q200 qualified, indicating its suitability for automotive and other high-reliability applications. Its construction and specifications make it a robust choice for power supply circuits and filtering applications.

MPI4040R4-100-R Quick Information

Product Type: Power Inductor
Canonical Name: ECS Inc. MPI4040R4-100-R Power Inductor
Subcategory: Power Inductor

MPI4040R4-100-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MPI4040R4-100-R Estimated Pricing

Qty Low High
1+ $0.51 $0.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

MPI4040R4-100-R Features

  • 10 µH inductance with ±20% tolerance.
  • 2.6A saturation current capability.
  • Wide -55°C to 125°C operating temperature.
  • Compact 4.45mm x 4.06mm package size.
  • AEC-Q200 qualified for high reliability.

MPI4040R4-100-R Applications

  • Suitable for power supply circuits.
  • Ideal for filtering applications.
  • Used in automotive systems.
  • Robust for industrial designs.

MPI4040R4-100-R FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the ECS Inc. MPI4040R4-100-R?

The inductance is 10 µH.

What is the saturation current for the MPI4040R4-100-R?

The saturation current (Isat) is 2.6A.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What are the package dimensions?

The package size is 4.45mm x 4.06mm.

Is this inductor AEC-Q200 qualified?

Yes, the rating is AEC-Q200.
