| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

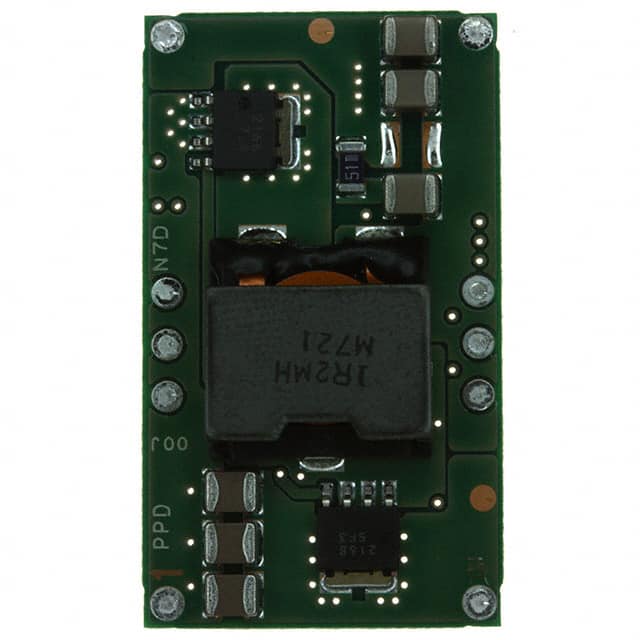

This Murata MPDTH12020WAS is a non-isolated PoL module DC DC converter designed for ITE (Commercial) applications. It delivers up to 99W of power with a maximum output current of 18A and an operating voltage of 10.8V. The converter boasts a high efficiency of 95% and features remote on/off, over-current protection (OCP), and under-voltage lockout (UVLO).
Designed for surface mounting, this component comes in a 10-SMD module package. Its dimensions are 38.1mm in length, 22.1mm in width, and 9.6mm in height. The operating temperature range is from -40°C to 85°C, making it suitable for various environmental conditions. Control features include an enable function with active high logic.
This DC DC converter is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited usability under standard conditions. The REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MPDTH12020WAS DC DC converter has an output current of 18A.
The Murata MPDTH12020WAS has a power rating of 99W.
The operating voltage for the MPDTH12020WAS is 10.8V.
The efficiency of the MPDTH12020WAS DC DC converter is 95%.
The dimensions of the MPDTH12020WAS are 38.1mm in length, 22.1mm in width, and 9.6mm in height.
The operating temperature range for this DC DC converter is -40°C to 85°C.
The MPDTH12020WAS is RoHS3 compliant.
