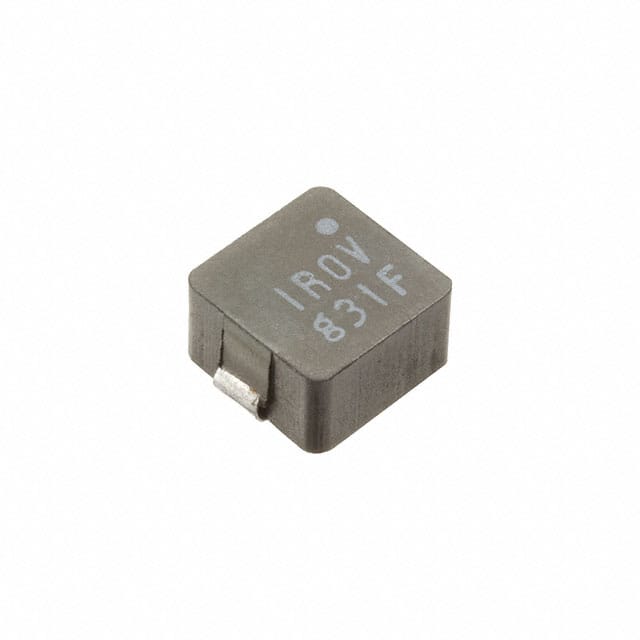

MPCV1060L1R0 The Yageo MPCV1060L1R0 is a shielded, surface mount fixed inductor with an inductance of 1µH and a current rating of 26A. It offers a low DC resistance of 1.87mOhm Max.
Mfr Part #:

MPCV1060L1R0

Available from 1 distributors
Mfr Name: Yageo
Yageo
The Yageo MPCV1060L1R0 is a shielded, surface mount fixed inductor with an inductance of 1µH and a current rating of 26A. It offers a low DC resistance of 1.87mOhm Max.
✓ Total Stock: 20 pcs
$ Price Range: $0.52

MPCV1060L1R0 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MPCV1060L1R0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Ratings
Shielding
Storage Temperature
Tape & Reel
Tolerance
Width
View Similar Products (0)

MPCV1060L1R0 Description

Short technical summary and product information.

The Yageo MPCV1060L1R0 is a shielded, surface mount fixed inductor designed for demanding applications. It features an inductance value of 1µH with a tolerance of ±20% and a significant current rating of 26A, with a maximum current of 35A. The DC resistance (DCR) is kept low at a maximum of 1.87mOhm.



Constructed from metal composite material, this inductor operates across a wide temperature range of -55°C to 155°C and meets AEC-Q200 automotive qualification standards. Its dimensions are 12.00mm in length, 10.00mm in width, and 6.00mm in height, making it suitable for various surface mount assemblies. The nonstandard package size accommodates its robust specifications.



Environmental compliance includes RoHS3 compliance and an MSL 1 rating, indicating unlimited shelf life under standard conditions. The REACH status is unaffected. This component is ideal for power supply circuits, filtering, and energy storage applications where high current handling and reliability are essential.

MPCV1060L1R0 Quick Information

Product Type: Fixed Inductor
Canonical Name: Yageo MPCV1060L1R0 Shielded Fixed Inductor

MPCV1060L1R0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MPCV1060L1R0 Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

MPCV1060L1R0 Features

  • Shielded metal composite fixed inductor.
  • 1µH inductance with ±20% tolerance.
  • High 26A current rating.
  • Low 1.87mOhm maximum DCR.
  • AEC-Q200 qualified for automotive use.

MPCV1060L1R0 Applications

  • Ideal for power supply filtering.
  • Suitable for DC-DC converters.
  • Used in automotive engine control.
  • Effective in energy storage circuits.

MPCV1060L1R0 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the MPCV1060L1R0?

The inductance is 1µH.

What is the current rating for the MPCV1060L1R0?

The current rating is 26A.

What is the maximum DC Resistance (DCR) of this inductor?

The maximum DC Resistance is 1.87mOhm.

What is the operating temperature range for the MPCV1060L1R0?

The operating temperature range is -55°C to 155°C.

How is the MPCV1060L1R0 mounted?

It is a surface mount device.

Is the MPCV1060L1R0 shielded?

Yes, this inductor is shielded.

What is the tolerance of the inductance for the MPCV1060L1R0?

The inductance tolerance is ±20%.
