| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,133 pcs
|
9133 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Differential | |
| Frequency | |
| Input | |
| Input Type | |
| Lead Spacing | |
| Main Purpose | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output | |
| PLL | |
| Ratio | |
| Supplier Device Package | |
| Voltage |

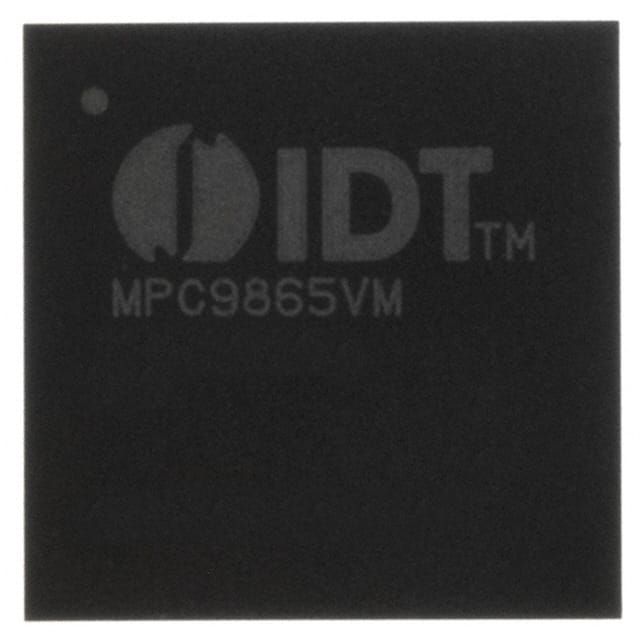

The MPC9865VMR2 from Renesas is a PLL-based clock generator specifically engineered for Freescale Microprocessor and Microcontroller applications, including PowerPC and PowerQUICC. This device generates a microprocessor input clock with selectable output frequencies ranging from 16 MHz to 200 MHz.
Key features include eight low-skew LVCMOS clock outputs, configurable for different frequencies. It supports both crystal oscillator and external reference inputs (25 or 33 MHz). The device operates with a 3.3V supply and offers 3.3V or 2.5V LVCMOS output supplies. Its extended ambient temperature range of -40°C to +85°C makes it suitable for telecommunication and networking requirements.
The MPC9865VMR2 is packaged in a 100-lead PBGA (100-CABGA (11x11)) for optimized performance and board density. It is designed for surface mount applications.
This clock generator is ideal for computing, networking, and telecommunications applications, providing reliable clock signals for microprocessors and other system components.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.70 | $3.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is between 3.135 V and 3.465 V.
The operating temperature range is -40°C to 85°C.
The MPC9865VMR2 is available in a 100-lead PBGA package, specifically 100-CABGA (11x11) and 100-LBGA.
The RoHS status is RoHS3 Compliant.
The maximum selectable output frequency is 200 MHz.
The MPC9865VMR2 supports input reference frequencies of 25 MHz and 33 MHz.
