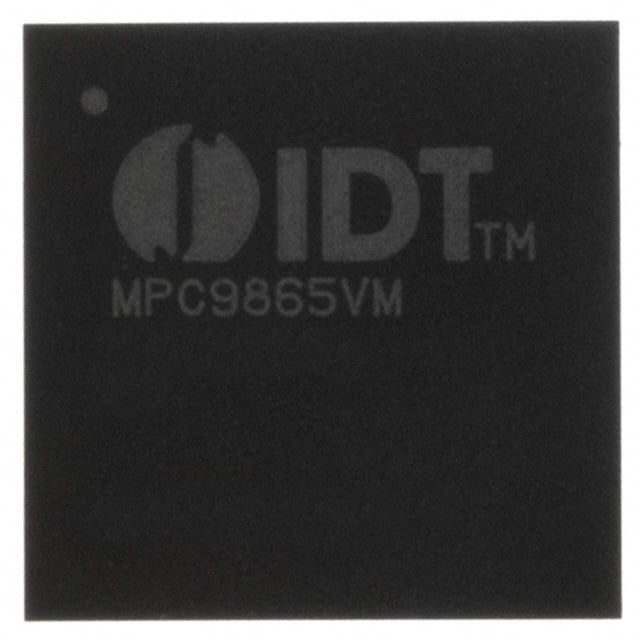

MPC9865VM The Renesas Electronics America Inc MPC9865VM is a clock generator with a maximum frequency of 200MHz. It supports LVCMOS, LVPECL, and Crystal inputs, with LVCMOS outputs.
Mfr Part #:

MPC9865VM

Available from 1 distributors
Mfr Name: Integrated Device Technology
Integrated Device Technology
The Renesas Electronics America Inc MPC9865VM is a clock generator with a maximum frequency of 200MHz. It supports LVCMOS, LVPECL, and Crystal inputs, with LVCMOS outputs.
✓ Total Stock: 9,133 pcs
$ Price Range: $2.95

MPC9865VM Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
9,133 pcs
On Request
9133 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MPC9865VM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency
Input Signal
Main Purpose
Mounting Type
Number of Circuits
Operating Temperature
Output Signal
PLL
Supply Voltage
View Similar Products (0)

MPC9865VM Description

Short technical summary and product information.

The MPC9865VM from Renesas Electronics America Inc is an application-specific clock generator designed for high-performance applications. It operates at a maximum frequency of 200MHz, making it suitable for demanding networking and telecom systems.



This device features versatile input signal compatibility, accepting LVCMOS, LVPECL, and Crystal signals, while providing LVCMOS outputs. It has a supply voltage range of 3.135V to 3.465V and an operating temperature range of -40°C to 85°C. The MPC9865VM is designed for surface mount applications and comes in a 100-LBGA package.



Key specifications include a 3:10 input to output ratio and support for differential inputs and outputs. Its primary applications include networking, PowerQUICC III, and telecom infrastructure. The component is RoHS3 compliant and has an MSL of 1.

MPC9865VM Quick Information

Product Type: Clock Generator
Canonical Name: MPC9865VM Clock Generator
Subcategory: Application Specific Clock/Timing

MPC9865VM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MPC9865VM Estimated Pricing

Qty Low High
1+ $2.95 $2.95

Estimated market price range - modelled values for guidance only, not live distributor offers.

MPC9865VM Features

  • Maximum frequency of 200MHz.
  • Supports LVCMOS, LVPECL, and Crystal inputs.
  • Provides LVCMOS outputs.
  • Operates from 3.135V to 3.465V.
  • Surface mountable in 100-LBGA package.

MPC9865VM Applications

  • Ideal for networking applications.
  • Suitable for PowerQUICC III systems.
  • Used in telecom infrastructure.
  • Clock generation for high-speed circuits.

MPC9865VM FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum operating frequency of the MPC9865VM?

The maximum operating frequency of the MPC9865VM is 200MHz.

What are the input and output signal types for the MPC9865VM?

The MPC9865VM accepts LVCMOS, LVPECL, and Crystal inputs, and provides LVCMOS outputs.

What is the supply voltage range for the MPC9865VM?

The supply voltage range for the MPC9865VM is 3.135V to 3.465V.

What is the operating temperature range of the MPC9865VM?

The operating temperature range of the MPC9865VM is -40°C to 85°C.

What package type is the MPC9865VM available in?

The MPC9865VM is available in a 100-LBGA package for surface mounting.
