| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | 1017 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Output | |
| PLL | |
| SVHC Present | |
| Supplier Device Package | |
| Type | |
| Voltage Supply |
The MPC9331AC is an integrated circuit designed for clock generation and distribution applications. It functions as a clock generator, fanout buffer, multiplexer, and zero delay buffer, offering versatility in timing signal management.
This component features a maximum operating frequency of 240MHz and operates within a supply voltage range of 3.135V to 3.465V. The operating temperature range is from 0°C to 70°C, making it suitable for various environmental conditions. The MPC9331AC supports LVCMOS and LVPECL inputs and LVCMOS outputs, with a ratio of 2:6 for input to output circuits.
Packaged in a 32-LQFP surface-mount form factor, the MPC9331AC is designed for integration into electronic systems requiring precise clock signal control. Its capabilities include PLL functionality with a bypass option and a divider/multiplier feature, enhancing its applicability in complex timing designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.02 | $2.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum operating frequency is 240 MHz.
The supply voltage range is 3.135 V to 3.465 V.
The operating temperature range is 0°C to 70°C.

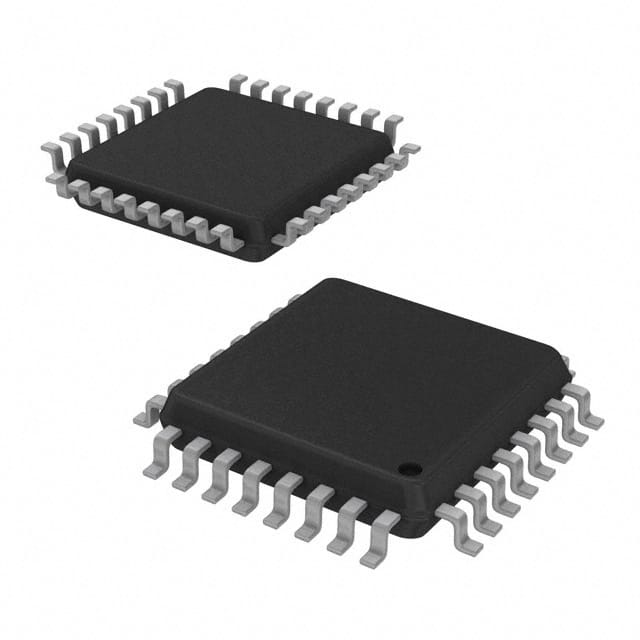

The MPC9331AC is available in a 32-LQFP (7x7 mm) surface-mount package.
It accepts LVCMOS or LVPECL inputs and provides LVCMOS outputs.
Yes, it has a PLL with bypass capability.
The input to output ratio is 2:6.
