| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Board Type | |
| Contents | |
| Core Processor | |
| Mounting Type | |
| Type | |
| Utilized IC |

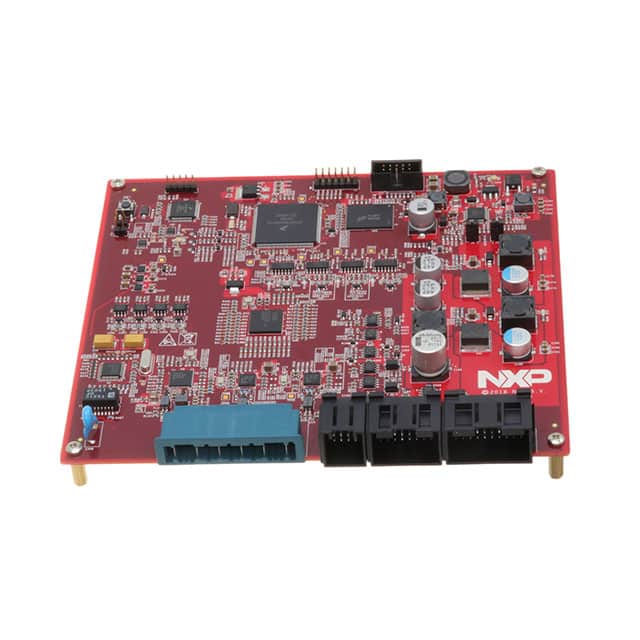

The MPC5748G-GW-RDB is a secure automotive Ethernet gateway reference design board from NXP Semiconductors. It is built around the MPC5748G microcontroller, which features a triple-core Power Architecture processor with two Z4 cores running at 160 MHz and one Z2 core at 80 MHz. This evaluation platform is designed for rapid prototyping and development of automotive and industrial gateway applications.
Key interface specifications include 5 Ethernet channels (4 x 100BASE-T1 and 1 x 100BASE-TX for DoIP), 8 CAN FD channels supporting up to 5 Mbps, 2 FlexLIN channels, 1 RS-232 channel, 3 PWM outputs, 2 ADC inputs, and 2 high-side switch outputs. The board includes 4 GB of onboard eMMC storage to support secure over-the-air updates.
The board incorporates functional safety features compliant with ISO 26262, including an ASIL D safety power SBC, an ASIL B S32K144 sub-MCU, and an ASIL A SJA1105Q Ethernet switch. Debugging is supported via a JTAG interface. The board is a fixed mounting type and includes the board(s) as kit contents.
| Qty | Low | High |
|---|---|---|
| 1+ | $638.94 | $638.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The board uses an e200 core processor based on Power Architecture technology.
It supports 5 Ethernet channels: 4 x 100BASE-T1 and 1 x 100BASE-TX for DoIP.
The board supports ASIL D SBC, ASIL B sub-MCU, and ASIL A switch per ISO 26262.
The Z4 cores operate at up to 160 MHz, and the Z2 core at 80 MHz.
It includes 4 GB of eMMC onboard storage for secure OTA updates.
The board provides a JTAG debug interface.
The RoHS status is listed as RoHS3 Compliant, but this is unverified low-confidence data.
