Mfr Part #:

MPC5604EKIT

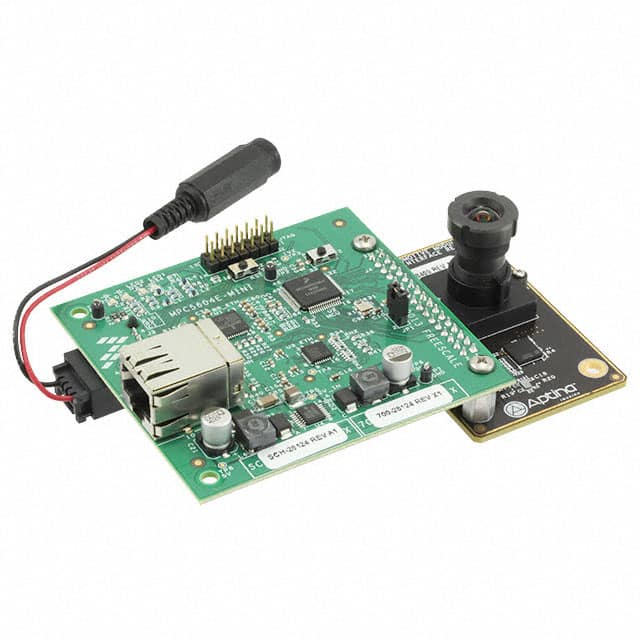

The MPC5604EKIT is a Video Over Ethernet evaluation kit from NXP Semiconductors, featuring the MPC5604E 32-bit microcontroller with 512KB Flash and 96KB SRAM. It includes board(s) for development.

✓ Total Stock: 84 pcs

$ Price Range: $861.25

MPC5604EKIT Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	84 pcs On Request	84 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MPC5604EKIT Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Evaluation and Demonstration Boards and Kits
Manufacturer Name	NXP Semiconductors
Embedded	Yes, MCU, 32-Bit
Function	Video Processing
Primary Attributes	Video Over Ethernet
Supplied Contents	Board(s)
Type	Video
Utilized IC	MPC5604E

View Similar Products (0)

MPC5604EKIT Description

Short technical summary and product information.

The MPC5604EKIT is an evaluation kit designed for Video Over Ethernet applications, based on the NXP MPC5604E microcontroller. The kit is intended for video processing development and includes board(s) as supplied contents.

The MPC5604E MCU features a 32-bit e200z0h core compliant with Power Architecture embedded category, with Variable Length Encoding (VLE) support. It includes 512 KB of on-chip Code Flash with ECC, an additional 64 KB of Data Flash for EEPROM emulation, and 96 KB of SRAM with ECC. The MCU also integrates a 10-bit ADC with 7 input channels, a 16-channel eDMA controller, and a range of communication interfaces: LINFlex, DSPI, FlexCAN, I2C, and Fast Ethernet (100 Mbit).

The MPC5604E is available in two package options: 100 LQFP (14 mm x 14 mm) and 64 LQFP (10 mm x 10 mm). The 100-pin package is intended for software development only. This kit provides a platform for evaluating the MCU's capabilities in embedded control and video-over-Ethernet systems.

MPC5604EKIT Quick Information

Product Type: Evaluation and Demonstration Board and Kit

Canonical Name: MPC5604EKIT Video Over Ethernet Evaluation Kit

Subcategory: Video Processing

MPC5604EKIT Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MPC5604EKIT Estimated Pricing

Qty	Low	High
1+	$861.25	$861.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

MPC5604EKIT Features

Video Over Ethernet evaluation platform.
Features MPC5604E 32-bit MCU.
512KB Flash and 96KB SRAM.
Includes Fast Ethernet connectivity.
Supports LINFlex, DSPI, FlexCAN interfaces.

MPC5604EKIT Applications

Ideal for video processing over Ethernet.
Used in automotive video applications.
Suitable for embedded MCU development.
Evaluates MPC5604E MCU capabilities.

MPC5604EKIT FAQs

7 frequently asked questions generated from this part’s specifications.

What package options are available for the MPC5604E MCU?

The MPC5604E is available in 100 LQFP (14mm x 14mm) and 64 LQFP (10mm x 10mm) packages. The 100-pin package is for software development only.

Is the MPC5604EKIT RoHS compliant?

RoHS3 Compliant, but unverified.

What is the core architecture of the MPC5604E?

The MPC5604E uses a 32-bit e200z0h core compliant with Power Architecture embedded category, with Variable Length Encoding (VLE) support.

How much flash memory does the MPC5604E have?

512 KB on-chip Code Flash with ECC, plus an additional 64 KB Data Flash for EEPROM emulation.

What communication interfaces are supported?

LINFlex, DSPI, FlexCAN, I2C, and Fast Ethernet (100 Mbit).

What is the ADC resolution?

10-bit ADC with 7 input channels (4 external, 3 internal: temperature sensor, core voltage, IO voltage).

What is the function of this kit?

Video Processing with Video Over Ethernet.
