MPC555LFMZP40 The NXP Semiconductors MPC555LFMZP40 is a 32-bit microcontroller featuring a PowerPC core. It offers 448KB of Flash memory and 26KB of RAM, operating at 40MHz.
Mfr Part #:

MPC555LFMZP40

Available from 5 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MPC555LFMZP40 is a 32-bit microcontroller featuring a PowerPC core. It offers 448KB of Flash memory and 26KB of RAM, operating at 40MHz.
✓ Total Stock: 39,619 pcs
$ Price Range: $6.40

MPC555LFMZP40 Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MPC555LFMZP40 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

MPC555LFMZP40 Description

Short technical summary and product information.

The MPC555LFMZP40 from NXP Semiconductors is a 32-bit microcontroller based on the PowerPC architecture. This device integrates a PowerPC core with a floating-point unit, providing robust processing capabilities for embedded applications.



Key electrical specifications include 448KB of Flash program memory and 26KB of RAM. It operates at a frequency of 40MHz and supports a wide voltage range from 2.7V to 5.5V. The microcontroller is equipped with 32 analog inputs, dual CAN 2.0B controllers, and other serial communication interfaces like SCI, SPI, and UART/USART.

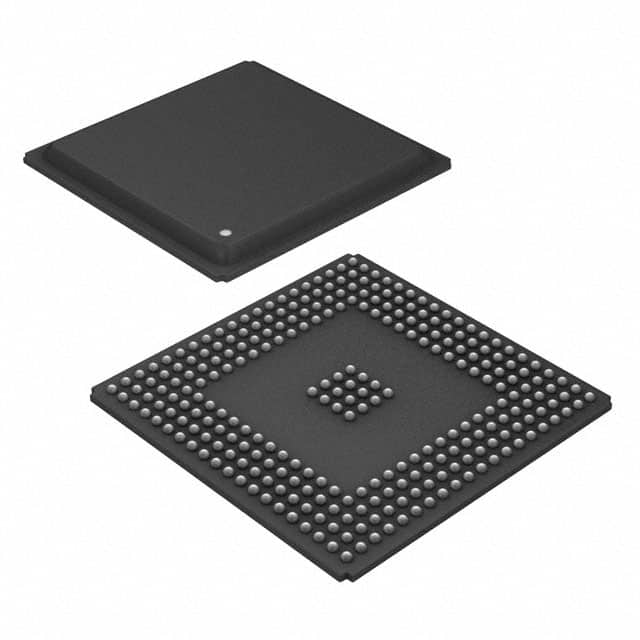

Designed for surface mount applications, the MPC555LFMZP40 comes in a 272-pin PBGA package. It operates within a temperature range of -40°C to 125°C. The device also features peripherals such as POR, PWM, and WDT, along with a 32x10-bit A/D data converter.



This microcontroller is suitable for various embedded systems requiring significant processing power and memory, including automotive and industrial control applications.

MPC555LFMZP40 Quick Information

Product Type: Microcontroller
Canonical Name: MPC555LFMZP40 Microcontroller
Subcategory: Embedded

MPC555LFMZP40 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MPC555LFMZP40 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

MPC555LFMZP40 Features

  • 32-bit PowerPC core with floating-point unit.
  • 448KB Flash program memory and 26KB RAM.
  • Operates at 40MHz with a 2.7V to 5.5V supply.
  • Includes CANbus, SCI, SPI, and UART connectivity.
  • Packaged in a 272-PBGA for surface mounting.

MPC555LFMZP40 Applications

  • Suitable for embedded control systems.
  • Ideal for automotive applications.
  • Used in industrial automation.
  • Supports complex data processing needs.

MPC555LFMZP40 FAQs

3 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the MPC555LFMZP40?

The operating voltage range is 2.7V to 5.5V.

What package type is the MPC555LFMZP40 available in?

The MPC555LFMZP40 is available in a 272-PBGA package.

What is the operating temperature range for the MPC555LFMZP40?

The operating temperature range is -40°C to 125°C (TA).
