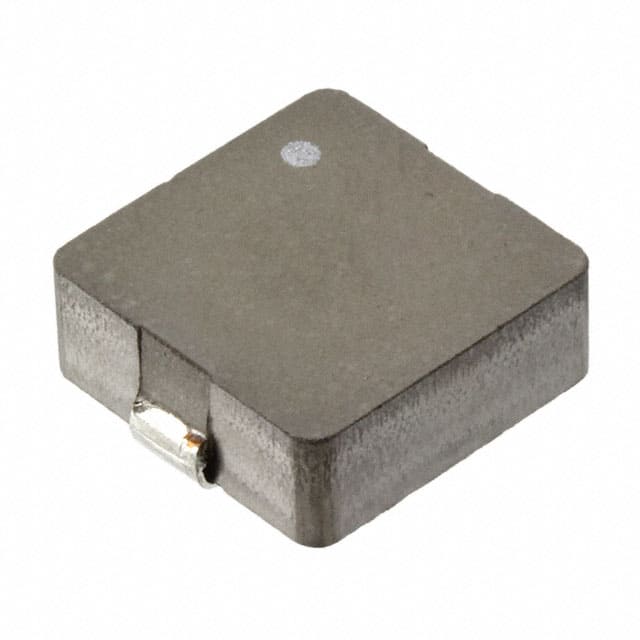

MPC1250LR36C The Yageo MPC1250LR36C is a shielded fixed inductor with a 360nH inductance value and a 38A current rating. It features a low DC resistance of 0.65mOhm and is designed for surface mounting.
Mfr Part #:

MPC1250LR36C

Available from 1 distributors
Mfr Name: Yageo
Yageo
The Yageo MPC1250LR36C is a shielded fixed inductor with a 360nH inductance value and a 38A current rating. It features a low DC resistance of 0.65mOhm and is designed for surface mounting.
✓ Total Stock: 120 pcs
$ Price Range: $0.20

MPC1250LR36C Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
120 pcs
On Request
120 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MPC1250LR36C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Shielding
Tolerance
Width
View Similar Products (0)

MPC1250LR36C Description

Short technical summary and product information.

The Yageo MPC1250LR36C is a shielded fixed inductor designed for various electronic applications. It offers a precise inductance of 360nH with a tolerance of ±20%, making it suitable for filtering and energy storage circuits.



This inductor boasts a high current rating of 38A and a maximum DC resistance of 0.65mOhm, ensuring efficient power handling. The operating temperature range is from -20°C to 120°C, providing reliability in diverse environmental conditions.



Constructed with a ferrite material, the MPC1250LR36C is housed in a 2-SMD, J-Lead package, specifically designed for surface mount technology. Its dimensions are 14.50mm in length, 12.50mm in width, and 5.00mm in height, facilitating integration into compact PCB designs.

MPC1250LR36C Quick Information

Product Type: Fixed Inductor
Canonical Name: Yageo MPC1250LR36C Shielded Fixed Inductor

MPC1250LR36C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MPC1250LR36C Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

MPC1250LR36C Features

  • Shielded ferrite fixed inductor.
  • 360nH inductance with ±20% tolerance.
  • High 38A current rating.
  • Low 0.65mOhm DC resistance.
  • Surface mount 2-SMD, J-Lead package.

MPC1250LR36C Applications

  • Suitable for power filtering circuits.
  • Used in energy storage applications.
  • Ideal for compact electronic designs.
  • Robust operation in wide temperature range.

MPC1250LR36C FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the MPC1250LR36C?

The inductance is 360 nH.

What is the current rating for the MPC1250LR36C?

The current rating is 38 A.

What is the DC resistance (DCR) of this inductor?

The DC resistance is 0.65 mOhm.

What is the operating temperature range for the MPC1250LR36C?

The operating temperature range is -20°C to 120°C.

How is the MPC1250LR36C mounted?

It is a surface mount component.

What type of package does the MPC1250LR36C come in?

It comes in a 2-SMD, J-Lead package.
