| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

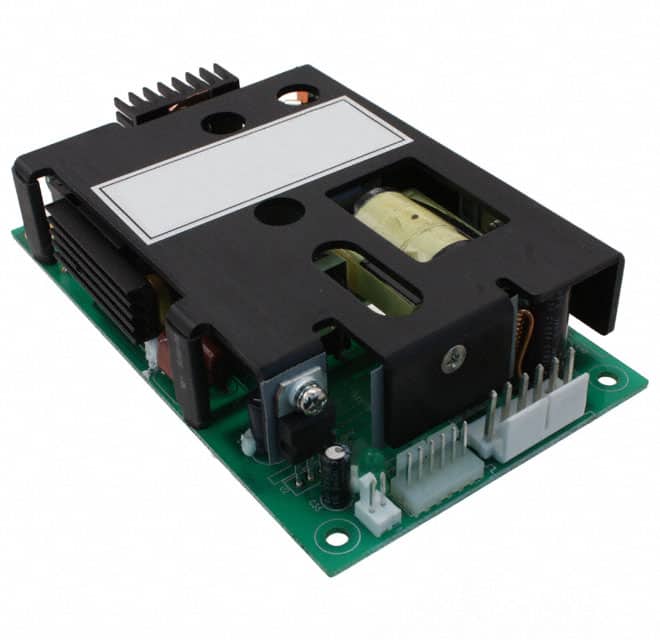

The Bel Power Solutions MPB125-2048G is an open-frame AC/DC converter designed for ITE (Commercial) applications. It delivers a total power of 125W with dual outputs, providing a main output of 48V at 2.6A and a secondary output of 12V at 0.5A. The converter boasts high efficiency of 90% and features like adjustable output, load sharing, Power Factor Correction (PFC) meeting EN 61000-3-2, and remote sense.
With a compact industry-standard 3" x 5" footprint (76.2mm x 127.0mm) and a height of 1.00" (25.4mm), it is suitable for chassis mounting. The operating temperature range is -20°C to 70°C with derating. The MPB125 series is approved to international regulatory standards and displays the CE Mark.
This series incorporates patented high efficiency circuitry and high power density. It is rated for convection as well as forced-air cooling, with full output power available at low CFM forced-air cooling. Optional remote on/off with standby power is also available.
The MPB125-2048G has a main output of 48V at 2.6A and a secondary output of 12V at 0.5A.
The total power output is 125W.
The efficiency is 90%.
The operating temperature range is -20°C to 70°C with derating.
The dimensions are 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm).
Yes, it features Power Factor Correction (PFC) that meets EN 61000-3-2.
It is CE Marked to Low Voltage Directive and meets Input Transient & ESD Compliance to EN 61000-4-2/-3/-4/-5.
