| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Connector | |
| Cooling Type | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Current | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

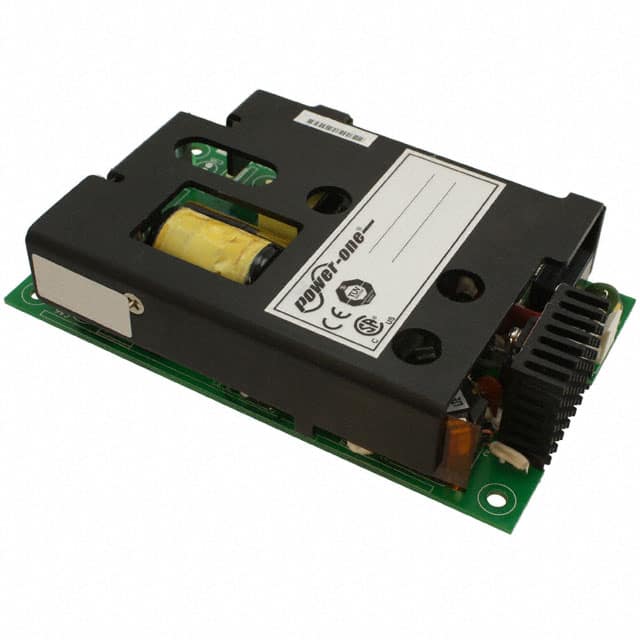

The Bel Power Solutions MPB125-1012G is an open-frame AC-DC converter designed for ITE (Commercial) applications. It delivers 125W of power with a single 12VDC output at 10.5A.
Key electrical specifications include an input voltage range of 90-264 VAC and an efficiency of 86%. Features such as Adjustable Output, Load Sharing, PFC, Remote Sense, and Universal Input enhance its versatility. The converter is designed for chassis mounting and has a Molex header connector.
Operating within a temperature range of 0°C to +70°C, this unit utilizes fan cooling. Its dimensions are 5 x 3 x 1.25 inches. The MPB125-1012G is RoHS3 compliant and has an MSL rating of 1.
The output voltage is 12 VDC and the output current is 10.5 A.
The input voltage range is 90 to 264 VAC.
The operating temperature range is -20°C to +70°C with derating.
The package is open frame and the mounting type is chassis mount.
The efficiency is 86%.
Features include adjustable output, load sharing, PFC, remote sense, and universal input.
