MP8795HGLE-Z The Monolithic Power Systems MP8795HGLE-Z is a step-down DC DC switching regulator. It features an adjustable output voltage and a maximum output current of 20A.
Mfr Part #:

MP8795HGLE-Z

Available from 2 distributors
Mfr Name: Monolithic Power Systems
Monolithic Power Systems
The Monolithic Power Systems MP8795HGLE-Z is a step-down DC DC switching regulator. It features an adjustable output voltage and a maximum output current of 20A.
✓ Total Stock: 5,001 pcs
$ Price Range: $1.08

MP8795HGLE-Z Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
Shenzhen YJT Company Limited ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MP8795HGLE-Z Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Quiescent Current
Supplier Device Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

MP8795HGLE-Z Description

Short technical summary and product information.

The MP8795HGLE-Z from Monolithic Power Systems is a DC DC switching regulator designed for step-down applications. It offers an adjustable output voltage ranging from 0.6V to 5.5V, with a maximum output voltage of 14.4V. The device can handle an output current of up to 20A and operates with an input voltage range of 4V to 16V.



This regulator features a switching frequency that can be set at 600kHz, 800kHz, or 1MHz, providing flexibility in design. It includes a synchronous rectifier for improved efficiency. The operating temperature range is -40°C to 125°C (TJ), making it suitable for various environmental conditions.

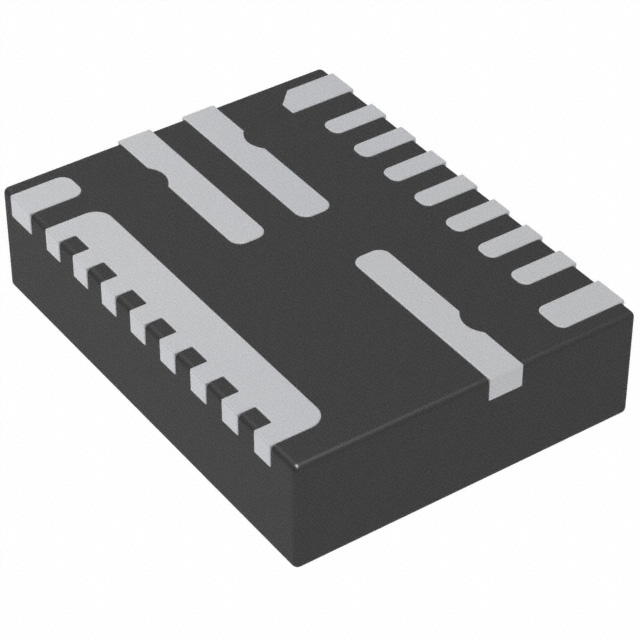

The MP8795HGLE-Z is available in a 21-PowerVFQFN package and utilizes a surface mount configuration. Its function as a step-down converter makes it a versatile component for power management solutions.

MP8795HGLE-Z Quick Information

Product Type: DC DC Switching Regulator
Series: MP
Canonical Name: MP8795HGLE-Z
Subcategory: Power Management (PMIC)

MP8795HGLE-Z Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MP8795HGLE-Z Estimated Pricing

Qty Low High
1+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

MP8795HGLE-Z Features

  • Step-down DC DC switching regulator.
  • Adjustable output voltage from 0.6V to 5.5V.
  • Maximum output current of 20A.
  • Input voltage range of 4V to 16V.
  • Surface mount 21-PowerVFQFN package.

MP8795HGLE-Z Applications

  • Point-of-load regulation for FPGAs and ASICs.
  • Distributed power architectures in telecom equipment.
  • Industrial and automotive power supplies.
  • Networking and computing systems power rails.

MP8795HGLE-Z FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output current capability of the MP8795HGLE-Z?

The MP8795HGLE-Z has a maximum output current of 20A.

What is the input voltage range for the MP8795HGLE-Z?

The input voltage range for the MP8795HGLE-Z is from 4V to 16V.

What is the adjustable output voltage range of the MP8795HGLE-Z?

The MP8795HGLE-Z offers an adjustable output voltage from 0.6V to 5.5V.

What are the available switching frequencies for the MP8795HGLE-Z?

The MP8795HGLE-Z can operate at switching frequencies of 600kHz, 800kHz, or 1MHz.

What is the operating temperature range of the MP8795HGLE-Z?

The operating temperature range for the MP8795HGLE-Z is -40°C to 125°C (TJ).

What type of package is the MP8795HGLE-Z in?

The MP8795HGLE-Z is supplied in a 21-PowerVFQFN package.
