| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
392 pcs
|
392 pcs | On Request | 1 | On Request | On Request | 09+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Fault Protection | |
| Features | |
| Interface | |
| Load Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Technology | |
| Voltage |
The MP8042DF-LF-Z is a half bridge driver IC manufactured by Monolithic Power Systems. It operates from a supply voltage of 7.5V to 24V and is designed to drive inductive loads using a PWM interface. The output configuration consists of two half bridges, each capable of delivering up to 5A peak output current.
Built with Power MOSFET technology, the driver achieves a typical on-resistance of 150 mOhm, minimizing power losses. Integrated fault protection includes current limiting, over-temperature shutdown, and under-voltage lockout (UVLO), enhancing system reliability. The device operates over a junction temperature range of -40°C to 125°C.

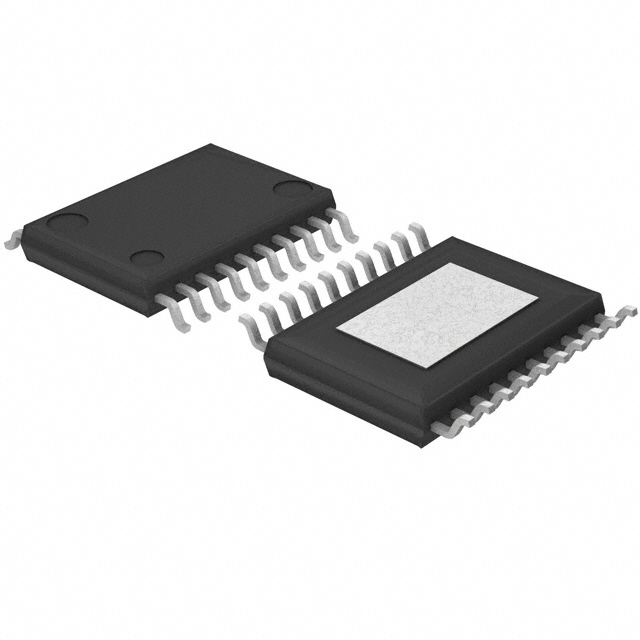

The MP8042DF-LF-Z is supplied in a surface-mount 20-TSSOP package with an exposed pad for improved thermal dissipation. It is available in tape and reel packaging suitable for automated assembly. This driver is suited for general-purpose half-bridge applications requiring robust inductive load control.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
7.5V to 24V.
20-TSSOP (0.173", 4.40mm Width) Exposed Pad.
-40°C to 125°C (TJ).
PWM.
5A.
Current limiting, over-temperature, and under-voltage lockout (UVLO).
Power MOSFET.
