MP6515GF-Z The Monolithic Power Systems MP6515GF-Z is a bipolar motor driver IC designed for general-purpose applications. It features a 40V maximum voltage rating and a 2.8A current capability.
Mfr Part #:

MP6515GF-Z

Available from 2 distributors
Mfr Name: Monolithic Power Systems
Monolithic Power Systems
The Monolithic Power Systems MP6515GF-Z is a bipolar motor driver IC designed for general-purpose applications. It features a 40V maximum voltage rating and a 2.8A current capability.
✓ Total Stock: 83,173 pcs
$ Price Range: $2.25

MP6515GF-Z Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
78,000 pcs
On Request
78000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
5,173 pcs
On Request
5173 pcs On Request 1 On Request On Request 1751+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MP6515GF-Z Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Function
Interface
Motor Type
Mounting Type
Operating Temperature
Output Configuration
Supplier Device Package
Supplier Package
Technology
Voltage
View Similar Products (0)

MP6515GF-Z Description

Short technical summary and product information.

The Monolithic Power Systems MP6515GF-Z is a bipolar motor driver IC suitable for general-purpose applications. This device operates within a temperature range of -40°C to 125°C (TJ) and can handle up to 40V maximum voltage.



With a current rating of 2.8A, the MP6515GF-Z is designed for driving bipolar motors. Its output configuration is a half bridge, and it utilizes Power MOSFET technology. The IC interfaces via logic signals.

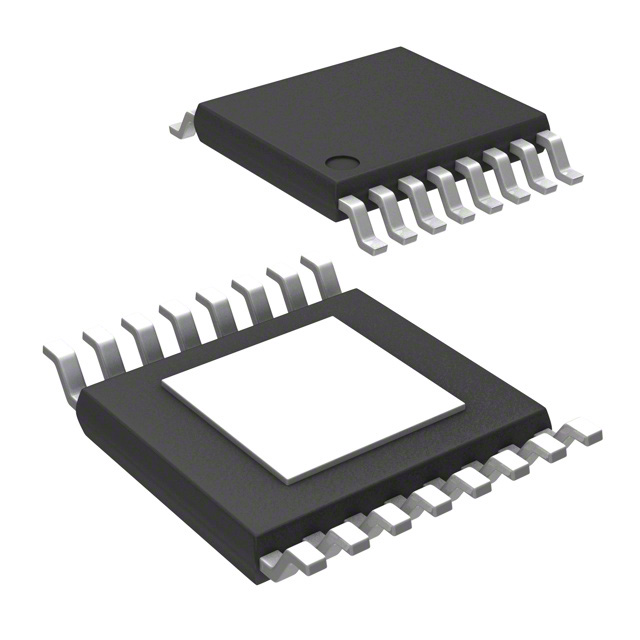

This motor driver IC comes in a 16-TSSOP (0.173", 4.40mm Width) Exposed Pad package, designed for surface mounting. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.

MP6515GF-Z Quick Information

Product Type: Motor Driver IC
Canonical Name: MP6515GF-Z Bipolar Motor Driver IC
Subcategory: Bipolar Motor Driver

MP6515GF-Z Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MP6515GF-Z Estimated Pricing

Qty Low High
1+ $2.25 $2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

MP6515GF-Z Features

  • Bipolar motor driver IC
  • 40V maximum voltage rating
  • 2.8A current capability
  • Surface mount 16-TSSOP package
  • Operates from -40°C to 125°C

MP6515GF-Z Applications

  • Ideal for bipolar stepper motor driving applications.
  • Suitable for general purpose half-bridge motor control.
  • Used in surface mount motor driver circuits.
  • Supports logic interface for motor control systems.
  • Designed for power MOSFET based motor drivers.

MP6515GF-Z FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the MP6515GF-Z?

-40°C to 125°C (junction temperature).

What is the maximum supply voltage for the MP6515GF-Z?

40V.

What package does the MP6515GF-Z come in?

16-TSSOP (0.173", 4.40mm Width) Exposed Pad.

What is the output current rating of the MP6515GF-Z?

2.8A.

What is the output configuration of the MP6515GF-Z?

Half Bridge.

What motor type does the MP6515GF-Z support?

Bipolar.

What interface does the MP6515GF-Z use?

Logic.
