MP6412GQGU-Z The Monolithic Power Systems MP6412GQGU-Z is a general-purpose load switch with a P-Channel output. It features a low Rds On of 150mOhm and is available in a Surface Mount package.
Mfr Part #:

MP6412GQGU-Z

Available from 1 distributors
Mfr Name: Monolithic Power Systems
Monolithic Power Systems
The Monolithic Power Systems MP6412GQGU-Z is a general-purpose load switch with a P-Channel output. It features a low Rds On of 150mOhm and is available in a Surface Mount package.
✓ Total Stock: 4,000 pcs
$ Price Range: $0.32

MP6412GQGU-Z Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MP6412GQGU-Z Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Fault Protection
Input Type
Mounting Type
Number of Outputs
Operating Temperature
Output Type
Ratio
Rds On (Typ)
Supplier Device Package
Switch Type
Voltage
View Similar Products (0)

MP6412GQGU-Z Description

Short technical summary and product information.

The Monolithic Power Systems MP6412GQGU-Z is a load switch designed for general-purpose applications. It utilizes a P-Channel output configuration and offers a low on-resistance (Rds On) of 150mOhm, contributing to efficient power delivery.

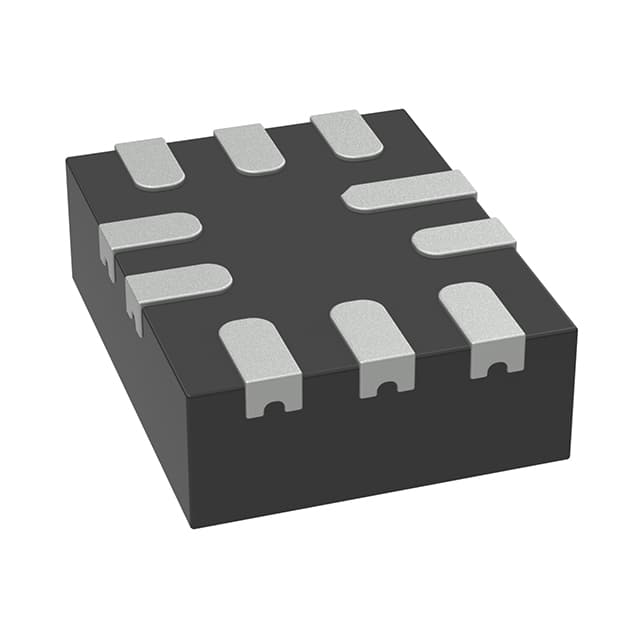

This component operates within a temperature range of -40°C to 125°C (TJ) and features fault protection including over-temperature and undervoltage lockout (UVLO). The device is supplied in a compact 10-UFQFN package, specifically a 10-UTQFN (1.4x1.8), designed for surface mounting.



Its non-inverting input type and a 1:1 ratio make it suitable for various power management tasks. The MP6412GQGU-Z is RoHS3 compliant, indicating adherence to environmental standards.

MP6412GQGU-Z Quick Information

Product Type: Load Switch
Canonical Name: MP6412GQGU-Z Load Switch
Subcategory: Power Distribution Switches, Load Drivers

MP6412GQGU-Z Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MP6412GQGU-Z Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

MP6412GQGU-Z Features

  • General purpose P-Channel load switch.
  • Low 150mOhm typical Rds On.
  • Surface mountable 10-UFQFN package.
  • Operates from -40°C to 125°C.
  • Includes over temperature and UVLO protection.

MP6412GQGU-Z Applications

  • Enables power gating in battery-powered devices.
  • Suitable for load switching in portable electronics.
  • Used for power distribution in low-power systems.
  • Provides protected high-side load switching.
  • Ideal for ultra-low quiescent current applications.

MP6412GQGU-Z FAQs

6 frequently asked questions generated from this part’s specifications.
What is the Rds On resistance for the MP6412GQGU-Z?

The typical Rds On resistance for the MP6412GQGU-Z is 150mOhm.

What is the operating temperature range of the MP6412GQGU-Z?

The MP6412GQGU-Z operates between -40°C and 125°C (TJ).

What type of package is the MP6412GQGU-Z in?

The MP6412GQGU-Z is supplied in a 10-UFQFN package.

What fault protection features does the MP6412GQGU-Z offer?

The MP6412GQGU-Z offers Over Temperature and UVLO fault protection.

Is the MP6412GQGU-Z RoHS compliant?

Yes, the MP6412GQGU-Z is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the MP6412GQGU-Z?

The Moisture Sensitivity Level (MSL) for the MP6412GQGU-Z is 1 Unlimited.
