| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,458 pcs
|
1458 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Switch Type | |
| Voltage |
The Monolithic Power Systems MP62550DGT-LF-Z is an integrated circuit designed as a general-purpose N-Channel power switch/driver. It features a 1:1 input to output ratio and a high-side output configuration.
Key electrical specifications include a maximum output current of 1.5A and a typical Rds On resistance of 100mOhm. The device operates with a load voltage range of 2.5V to 5.5V and does not require a separate supply voltage (Vcc/Vdd). It includes features such as slew rate control and a status flag, along with fault protection mechanisms like adjustable current limiting, over-temperature protection, and UVLO.

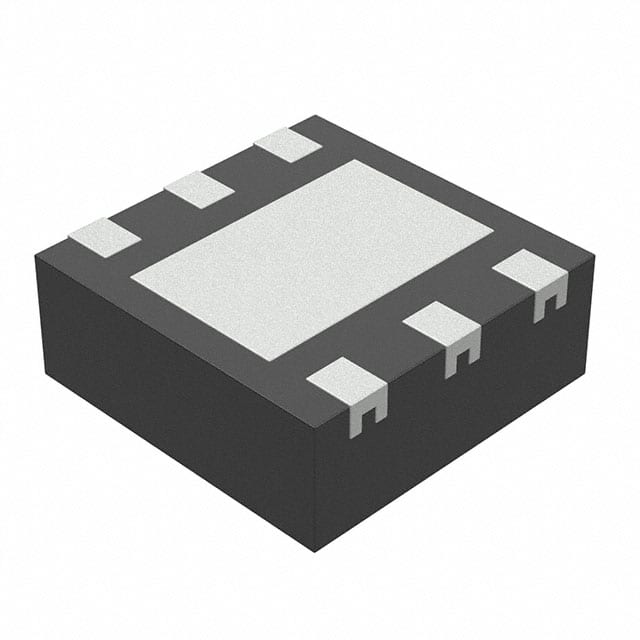

This component is designed for surface mounting and comes in a compact 6-TQFN (2x2) package, also referred to as a 6-WDFN exposed pad. The operating temperature range is -40°C to 85°C (TA). The product is supplied in tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum continuous output current is 1.5A.
The typical on-resistance is 100mOhm.
The operating temperature range is -40°C to +85°C.
It is available in a 6-WDFN Exposed Pad package, also specified as a 6-TQFN (2x2mm).
It includes adjustable current limiting, over-temperature protection, and under-voltage lockout (UVLO).
