| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | 1909+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Output Configuration | |
| Package / Case | |
| Switch Type | |
| Tape & Reel |

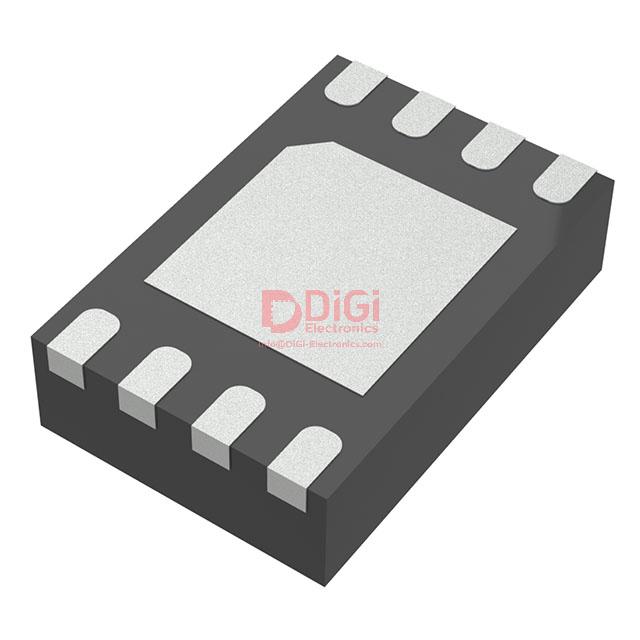

The MP6205DD-LF-Z is a power management integrated circuit designed for power distribution applications. It functions as a general-purpose switch with a 1:1 input to output ratio and a high-side output configuration. This device operates within a load voltage range of 2.7V to 5.5V and can deliver up to 500mA of output current.
The IC is housed in an 8-QFN package, suitable for surface mount applications. Its interface is controlled via an On/Off signal, providing straightforward control over power delivery. The 'Not Required' designation for Voltage - Supply (Vcc/Vdd) suggests it may be powered directly from the load supply or have an integrated regulator.
This component is categorized under Power Distribution Switches, Load Drivers within the broader Power Management (PMIC) and Integrated Circuits (ICs) classifications. Its design is intended for applications requiring efficient and reliable power switching capabilities.
High side.
2.7V to 5.5V.
500mA.
On/Off.
8-QFN.
Surface mount.
1 output.
