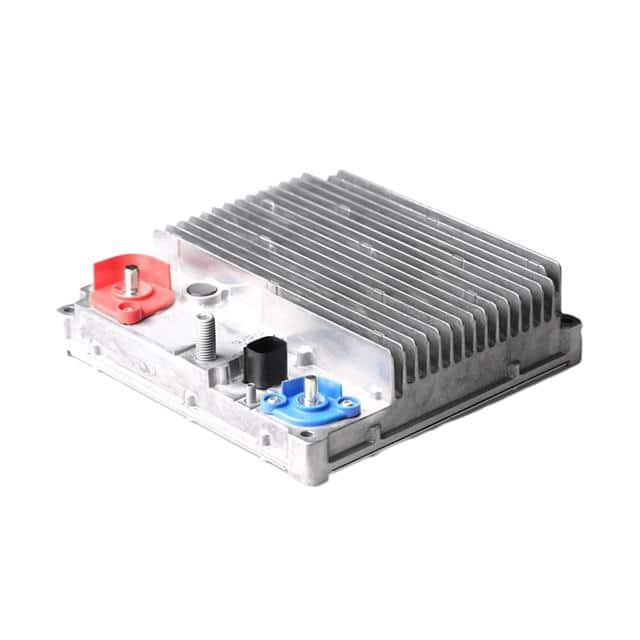

The Prodrive Technologies MP5624-150 is a high-power, bidirectional DC-DC converter from the MP Series. Designed for demanding industrial and off-highway applications, it delivers reliable power transfer between low and high-voltage buses, supporting mild-hybrid and regenerative energy architectures.
This converter boasts a power rating of 3.6kW and an impressive efficiency of 95%. It features a wide operating temperature range from -40°C to 75°C, making it suitable for challenging environments. The unit is ruggedly built and rated IP69K, ensuring durability.
Key features include CAN and J1939 communication support, user-configurable PGNs, voltage ranges, and bitrate. It also includes protections against reverse polarity, short-circuit, over-current, under-voltage, over-voltage, and internal over-temperature. Integrated EMC filters contribute to its robust performance.
The MP5624-150 is designed for chassis mounting and has mechanical dimensions of 227x233x62 mm, with a weight of 3.2kg. Its slim and energy-efficient design makes it ideal for integration into battery systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MP5624-150 has a power rating of 3.6kW.
The efficiency of the MP5624-150 is 95%.
The MP5624-150 operates in a temperature range of -40°C to 75°C.
The high-voltage side operates from 24V to 60V, and the low-voltage side operates from 8V to 16V.
The MP5624-150 is designed for chassis mounting.
Yes, the MP5624-150 is a bidirectional DC-DC converter.
