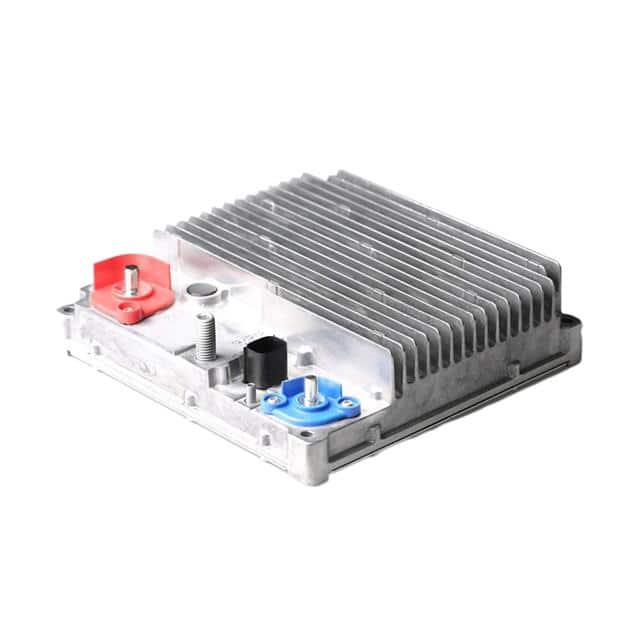

The Prodrive Technologies MP5612-80 is a rugged, enclosed, bidirectional DC-DC converter with a power output of 1kW. It is designed for demanding industrial and off-highway applications, supporting mild-hybrid, electrified, and regenerative energy architectures.
Key electrical specifications include an input voltage range of 24V-60V and an output voltage range of 8V-16V, with a current rating of 80A. The converter boasts a high efficiency of 95% and features protections against reverse polarity, short-circuit, over-current, under-voltage, and over-voltage. It also includes internal over-temperature protection and hardware enable functionality for wake-up/enable.
This DC-DC converter is built for harsh environments, featuring a rugged IP69K rating and compliance with automotive environmental standards. It operates reliably within a temperature range of -40°C to 75°C. The mechanical dimensions are 227 x 233 x 62 mm, and it has a weight of 2.6kg. Mounting is via chassis mount.
Additional features include CAN and J1939 communication support, configurable PGNs, voltage range, and bitrate, multiphase scalability, and integrated EMC filters. This makes the MP5612-80 a versatile solution for various power conversion needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The power output of the MP5612-80 is 1kW.
The input voltage range for the MP5612-80 is 24V to 60V.
The output voltage range of the MP5612-80 is 8V to 16V.
The MP5612-80 operates in a temperature range of -40°C to 75°C.
The MP5612-80 uses chassis mount.
The efficiency of the MP5612-80 is 95%.
