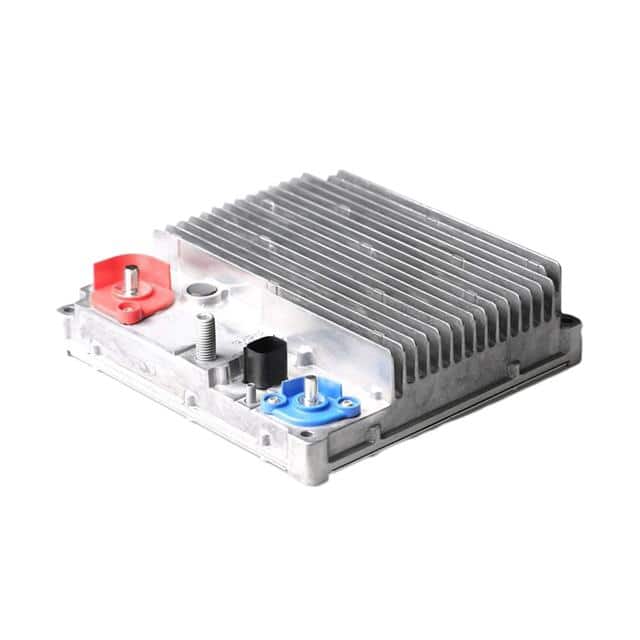

The Prodrive Technologies MP5612-240 is a 3kW enclosed, bidirectional DC-DC converter designed for demanding industrial and off-highway applications. It offers reliable power transfer between low and high-voltage buses, supporting mild-hybrid, electrified, and regenerative energy architectures.
Key electrical specifications include a power rating of 3kW, an efficiency of 95%, and a current output of 240A. The converter supports a wide operating voltage range, with a high-voltage side of 24V-60V and a low-voltage side of 8V-16V. It operates reliably within a temperature range of -40°C to 75°C.
This converter features chassis mount mounting, a single output, and integrated EMC filters. Protections include reverse polarity, short-circuit, over-current, under-voltage, and over-voltage, along with internal over-temperature protection. It also includes hardware enable digital input for wake-up/enable functionality and supports CAN and J1939 communication protocols.
The mechanical specifications include dimensions of 227x233x62 mm and a weight of 3.2kg. The MP5612-240 is designed to be rugged and complies with automotive environmental standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The power rating is 3kW.
The efficiency is 95%.
The operating temperature range is -40°C to 75°C.
The high-voltage side operates from 24V to 60V, and the low-voltage side operates from 8V to 16V.
The MP5612-240 uses chassis mount.
Protections include Reverse Polarity, Short-Circuit, Over Current, Under Voltage, Over Voltage, and Internal Over-Temperature.
Yes, the MP5612-240 has integrated EMC filters.
