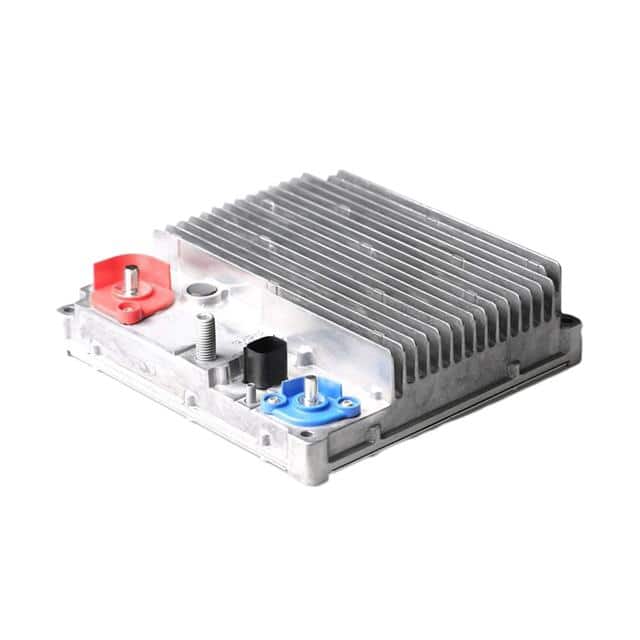

The Prodrive Technologies MP5612-160 is a low voltage, bidirectional DC-DC converter with a power rating of 2kW. It is designed for demanding industrial and off-road applications, as well as mild hybrid automotive systems. This converter facilitates reliable power transfer between low and high-voltage buses, supporting electrified and regenerative energy architectures.
Key features include a configurable voltage range, CAN and J1939 communication, and multiphase scalability. It offers protections against reverse polarity, short-circuit, over current, under voltage, and over voltage, along with internal over-temperature protection. The unit is rugged and rated IP69K.
With an efficiency of 95% and an operating temperature range of -40°C to 75°C, the MP5612-160 is suitable for challenging environments. Its mechanical dimensions are 227x233x62 mm, and it features a chassis mount type.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MP5612-160 has a power rating of 2kW.
The high voltage side operates from 24V to 60V, and the low voltage side operates from 8V to 16V.
The efficiency of the MP5612-160 is 95%.
The MP5612-160 operates in a temperature range of -40°C to 75°C.
The MP5612-160 uses chassis mount.
