| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,399 pcs
|
1399 pcs | On Request | 1 | On Request | On Request | 1512+ | On Request | On Request | |
|
939 pcs
|
939 pcs | On Request | 1 | On Request | On Request | 1636+ | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Features | |
| Internal Switch(s) | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Programmable Features | |
| Supplier Device Package | |
| Type | |
| Voltage |
The MP5022AGQV-Z from Monolithic Power Systems is a Hot Swap Controller and Monitor integrated circuit. Designed for general-purpose applications, this device facilitates safe insertion and removal of components in live systems.
Key electrical specifications include an operating voltage range of 8V to 16V and a substantial current rating of 15A. It features essential protective functions such as Overvoltage Protection (OVP), Thermal Limit, and Undervoltage Lockout (UVLO). The device also includes programmable current limit functionality.

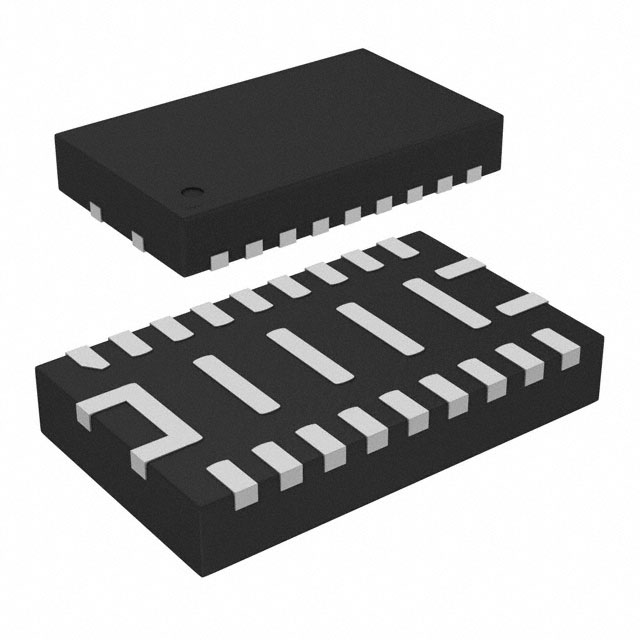

This controller is housed in a 22-PowerVFQFN package, with a supplier-specified package of 22-QFN (3x5). It is designed for surface mount installation and operates within a temperature range of -40°C to 125°C (TJ). The single-channel design simplifies integration into various power management systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.31 | $1.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MP5022AGQV-Z operates from 8V to 16V.
The MP5022AGQV-Z is rated for 15A continuous current.
The MP5022AGQV-Z is available in a 22-PowerVFQFN package with a supplier device package of 22-QFN (3x5 mm).
The MP5022AGQV-Z has an operating junction temperature range of -40°C to 125°C.
The MP5022AGQV-Z includes overvoltage protection (OVP), undervoltage lockout (UVLO), and thermal limit.
Yes, the MP5022AGQV-Z is a surface mount device.
