| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,010 pcs
|
2010 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
214 pcs
|
214 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Applications | |
| Features | |
| Lead Spacing | |
| Maximum Pressure | |
| Mounting Type | |
| Operating Pressure | |
| Operating Temperature | |
| Output | |
| Output Type | |
| Port Size | |
| Port Style | |
| Pressure Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Voltage |

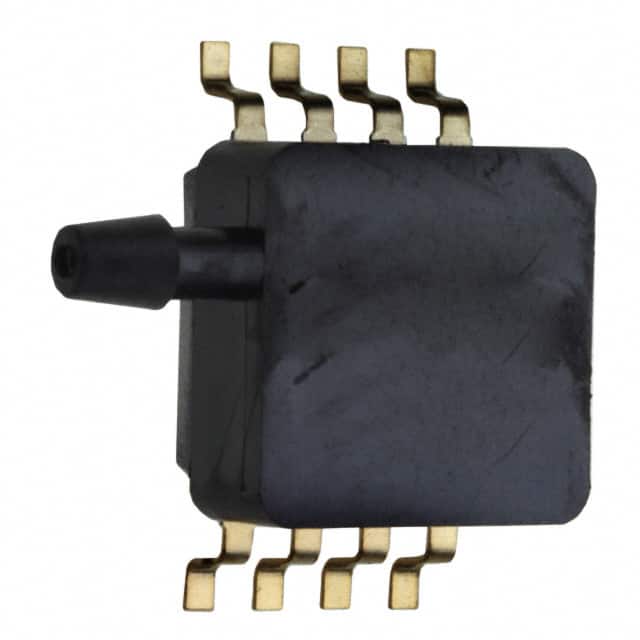

The NXP Semiconductors MP3V5050GP is a surface-mount pressure sensor with temperature compensation. It is designed for board mount applications and features a vented gauge pressure type with a port size of 0.13" (3.17mm) tube.
This sensor operates within a voltage range of 2.7V to 3.3V, providing an analog voltage output from 0.06V to 2.82V. It is rated for an operating pressure of 7.25PSI (50kPa) and a maximum pressure of 29.01PSI (200kPa), with an accuracy of ±2.5%. The operating temperature range is -40°C to 125°C.
The MP3V5050GP comes in an 8-SOP package with a gull wing termination style and side port. It is suitable for applications requiring precise pressure monitoring within its specified limits.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the MP3V5050GP is between 2.7V and 3.3V.
The MP3V5050GP is available in an 8-SOP package and an 8-SMD, Gull Wing, Side Port package.
The operating temperature range for the MP3V5050GP is -40°C to 125°C.
The MP3V5050GP is RoHS3 Compliant.
