| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
82,182 pcs
|
82182 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,942 pcs
|
3942 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request | |
|
462 pcs
|
462 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Direction | |
| Frequency Range | |
| Height | |
| Lead Style | |
| Mounting Type | |
| Output Type | |
| Port Location | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Type |

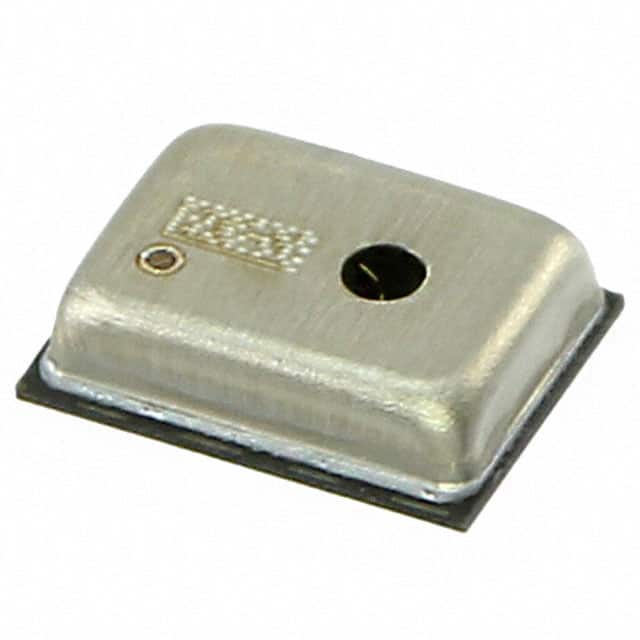

This MEMS microphone from STMicroelectronics, part number MP34DT01TR-M, offers a digital PDM output and an omnidirectional pickup pattern. It is designed for a wide operating voltage range of 1.64V to 3.6V, with a rated voltage of 1.8V, and consumes a low supply current of 600 µA.
The microphone's frequency response spans from 20 Hz to 10 kHz, with a sensitivity of -26dB ±3dB at 94dB SPL and an S/N ratio of 61dB. The component is housed in a compact 4.00mm x 3.00mm rectangular package with a maximum height of 1.16mm, suitable for surface mounting via solder pads.
Environmental compliance includes RoHS3 status. The product is supplied in tape and reel or cut tape packaging. It is classified as obsolete by the manufacturer.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency range is 20 Hz to 10 kHz.
The sensitivity is -26dB ±3dB @ 94dB SPL.
The S/N Ratio is 61dB.
The operating voltage range is 1.64 V to 3.6 V.
The rated voltage is 1.8 V.
The current supply is 600 µA.
The dimensions are 4.00mm x 3.00mm.
