MP3306EG-LF-P The Monolithic Power Systems MP3306EG-LF-P is an active LED driver with a boost topology. It operates from a 3V to 12V supply and provides up to 30V output.
Mfr Part #:

MP3306EG-LF-P

Available from 1 distributors
Mfr Name: Monolithic Power Systems
Monolithic Power Systems
The Monolithic Power Systems MP3306EG-LF-P is an active LED driver with a boost topology. It operates from a 3V to 12V supply and provides up to 30V output.
✓ Total Stock: 25,441 pcs
$ Price Range: $0.17

MP3306EG-LF-P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
25,441 pcs
On Request
25441 pcs On Request 1 On Request On Request 1328+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MP3306EG-LF-P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Dimming
Frequency
Halogen Free
Internal Switch(s)
Lead Style
Mounting Type
Number of Outputs
Operating Temperature
SVHC Present
Supplier Device Package
Topology
Type
Voltage
View Similar Products (0)

MP3306EG-LF-P Description

Short technical summary and product information.

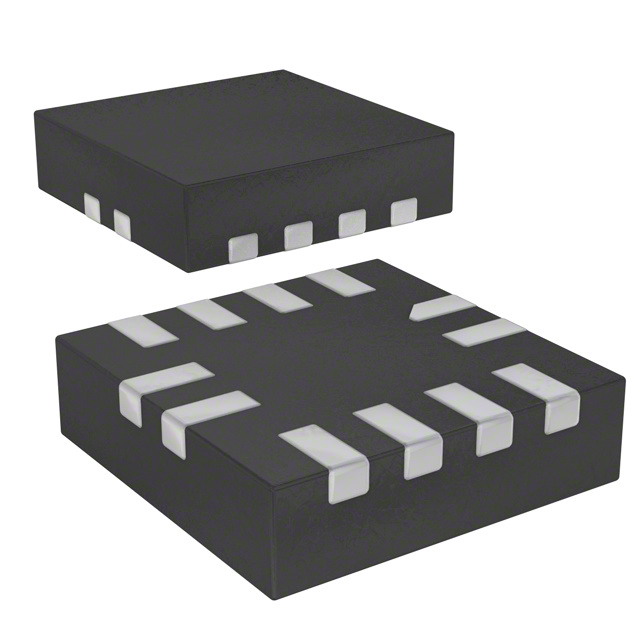

The MP3306EG-LF-P from Monolithic Power Systems is a high-quality LED driver designed for backlight applications. This device features a boost topology with internal switches, enabling efficient power conversion.



Key electrical specifications include an input voltage range of 3V to 12V and an output voltage of up to 30V. The driver can deliver a current of 1.8A per channel and operates at a frequency of 690kHz. It supports both Analog and PWM dimming methods, offering flexibility in light control.



Designed for surface mounting, the MP3306EG-LF-P comes in a compact 12-QFN (2x2) package. Its operating temperature range is -40°C to 125°C (TJ), making it suitable for various environmental conditions. The product status is active, ensuring continued availability for new designs.

MP3306EG-LF-P Quick Information

Product Type: LED Driver
Canonical Name: MP3306EG-LF-P LED Driver
Subcategory: Power Management ICs

MP3306EG-LF-P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

MP3306EG-LF-P Estimated Pricing

Qty Low High
1+ $0.17 $0.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

MP3306EG-LF-P Features

  • Active LED driver with boost topology.
  • Wide 3V to 12V supply voltage range.
  • High 30V output voltage capability.
  • 1.8A output current per channel.
  • Supports PWM and Analog dimming.

MP3306EG-LF-P Applications

  • Backlight driver for LCD displays
  • LED backlight for portable devices
  • Dimmable LED backlight using PWM
  • Boost converter for series LED strings

MP3306EG-LF-P FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

The supply voltage range is 3V to 12V.

What package does the MP3306EG-LF-P come in?

It comes in a 12-pin QFN package (2x2mm).

What is the operating temperature range?

The operating junction temperature range is -40°C to 125°C.

What topology does the MP3306EG-LF-P use?

It uses a step-up (boost) topology.

What dimming methods are supported?

It supports analog and PWM dimming.

What is the switching frequency?

The switching frequency is 690kHz.

What is the switch current rating?

The internal switch is rated for 1.8A.
