| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

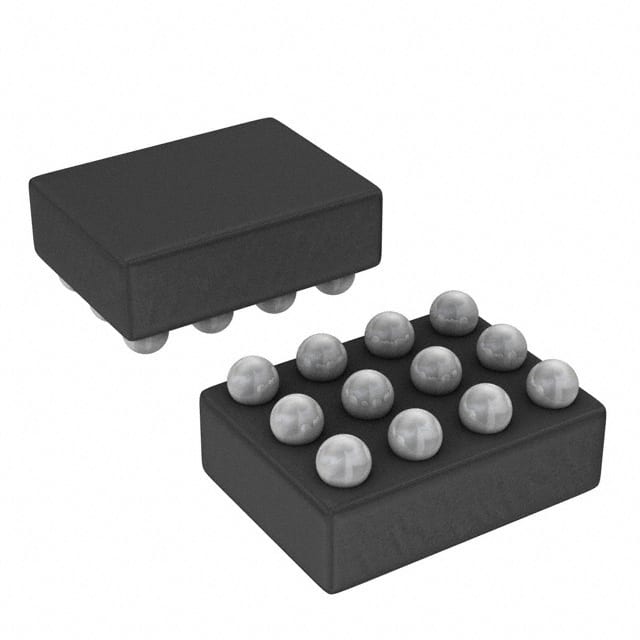

The MP28160GC-Z is a buck-boost converter from Monolithic Power Systems, designed for space-constrained portable applications. It offers a fixed 3.3V output voltage with an input voltage range of 2.5V to 5.5V and can deliver up to 500mA of output current.
Key electrical specifications include a 1.8MHz switching frequency. The device is housed in a 12-CSP (1.4x1.8) package and is designed for surface mount applications. Its operating temperature range is -40°C to 125°C (TJ).
This converter is suitable for applications such as portable devices, USB-C cables, and Thunderbolt devices. It is noted as being best for these applications and should be avoided if output voltages other than 3.3V are required. Thermal management and PCB layout should be checked before use.
The MP28160GC-Z is RoHS compliant, lead-free, and halogen-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MP28160GC-Z provides a fixed 3.3V output.
The MP28160GC-Z can deliver up to 500mA of output current.
The input voltage range for the MP28160GC-Z is 2.5V to 5.5V.
The MP28160GC-Z operates between -40°C and 125°C (TJ).
The MP28160GC-Z is available in a 12-CSP (1.4x1.8) package.
The MP28160GC-Z is designed for surface mount.
