MP2636GR-Z
Monolithic Power Systems
The Monolithic Power Systems MP2636GR-Z is a single-cell Lithium Ion/Polymer battery charger IC. It supports a maximum charge current of 3A and a supply voltage up to 6V.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,592 pcs
|
2592 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Chemistry | |
| Battery Pack Voltage | |
| Charge Current | |
| Current | |
| Fault Protection | |
| Mounting Type | |
| Number of Cells | |
| Operating Temperature | |
| Programmable Features | |
| Supplier Device Package | |
| Voltage |
The MP2636GR-P from Monolithic Power Systems is an integrated circuit designed for battery charging applications. This device is specifically engineered for Lithium Ion/Polymer battery chemistries, supporting single-cell configurations.
Key electrical specifications include a charge current capability of 3A and a programmable current feature. The IC operates within a voltage range of 6V and supports a battery pack voltage of 4.2V. It also includes programmable timer features for enhanced control.
For protection, the MP2636GR-P incorporates fault protection against over temperature, over voltage, and short circuits. The operating temperature range is -40°C to 125°C (TJ).

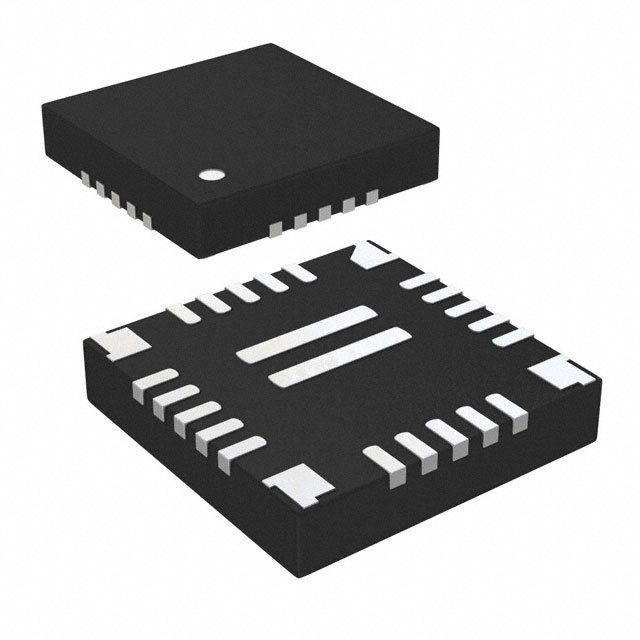

This component is supplied in a 30-PowerVFQFN package and utilizes surface mount technology for integration into electronic designs. The supplier device package is specified as 30-QFN (4x4).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.29 | $1.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The charge current is 3A.
It supports 1 cell.
It supports Lithium Ion/Polymer batteries.
Over temperature, over voltage, and short circuit protection.
-40°C to 125°C.
30-PowerVFQFN (30-QFN, 4x4mm).
Surface mount.
