MP2491CGQB-Z The Monolithic Power Systems MP2491CGQB-Z is a step-down DC-DC switching regulator. It features an adjustable output voltage and a 6A output current.
Mfr Part #:

MP2491CGQB-Z

Available from 5 distributors
Mfr Name: Monolithic Power Systems
Monolithic Power Systems
The Monolithic Power Systems MP2491CGQB-Z is a step-down DC-DC switching regulator. It features an adjustable output voltage and a 6A output current.
✓ Total Stock: 7,924 pcs
$ Price Range: $1.08

MP2491CGQB-Z Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MP2491CGQB-Z Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Supplier Device Package
Supplier Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

MP2491CGQB-Z Description

Short technical summary and product information.

The Monolithic Power Systems MP2491CGQB-Z is a versatile step-down (buck) switching regulator designed for efficient power management. It operates with an input voltage range of 4V to 32V and can deliver an output current of up to 6A.

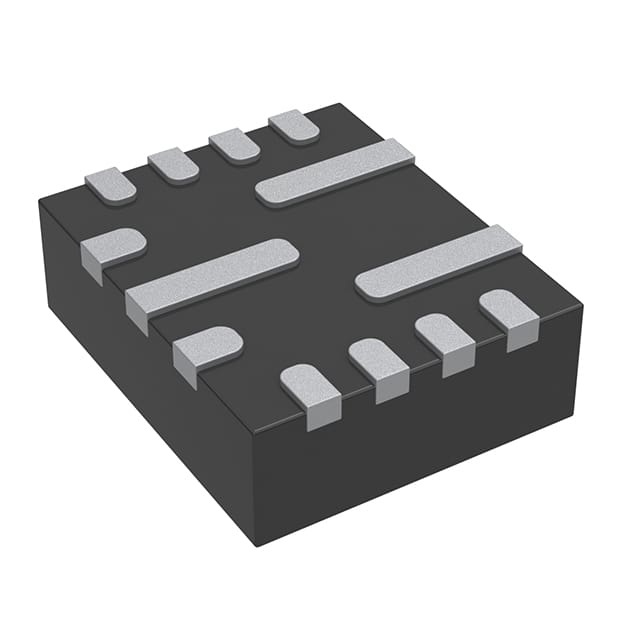

This adjustable output regulator provides flexibility in design, allowing for output voltages from 0.5V up to 30V. The device operates at a switching frequency of 490kHz, contributing to its compact solution size. It is housed in a 13-PowerVFQFN package and features surface mount technology for easy integration into PCBs.



The MP2491CGQB-Z is suitable for various applications requiring stable and efficient voltage conversion. Its positive output configuration and synchronous rectifier design enhance overall performance and efficiency.

MP2491CGQB-Z Quick Information

Product Type: DC DC Switching Regulator
Canonical Name: MP2491CGQB-Z Buck Switching Regulator IC
Subcategory: DC-DC Switching Regulator

MP2491CGQB-Z Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MP2491CGQB-Z Estimated Pricing

Qty Low High
1+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

MP2491CGQB-Z Features

  • Step-down buck switching regulator.
  • Adjustable output voltage from 0.5V to 30V.
  • Maximum output current of 6A.
  • Wide input voltage range of 4V to 32V.
  • Surface mount 13-PowerVFQFN package.

MP2491CGQB-Z Applications

  • Power supply designs.
  • Voltage regulation circuits.
  • Embedded systems power.
  • Consumer electronics power.

MP2491CGQB-Z FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the MP2491CGQB-Z?

The input voltage range is from 4V to 32V.

What is the maximum output current of the MP2491CGQB-Z?

The maximum output current is 6A.

What is the adjustable output voltage range?

The output voltage can be adjusted from 0.5V to 30V.

What is the switching frequency?

The switching frequency is 490kHz.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C (TJ).

What type of package is the MP2491CGQB-Z in?

It is in a 13-PowerVFQFN package.

What is the mounting type?

The mounting type is Surface Mount.
