| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
190 pcs
|
190 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| SVHC Present | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The Monolithic Power Systems MP2308GD-Z is a versatile step-down (buck) switching regulator designed for efficient power conversion. It features an adjustable output voltage, capable of operating within a wide input voltage range from 4.75V to 18V.
This regulator can supply a maximum output current of 4A. Its switching frequency can be adjusted between 300kHz and 2MHz, allowing for flexibility in design and component selection. The device is configured for a positive output and includes a synchronous rectifier for improved efficiency.

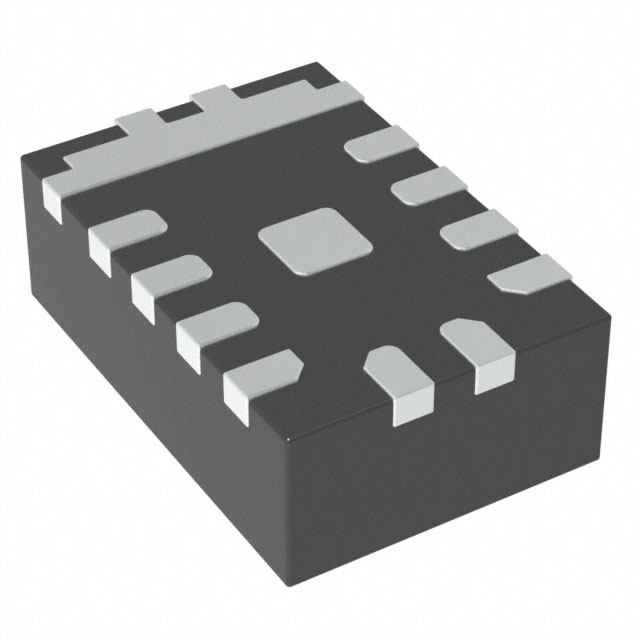

Packaged in a 14-PowerVFQFN, the MP2308GD-Z is designed for surface mount applications. The operating temperature range is -40°C to 125°C (TJ), making it suitable for various environmental conditions. The compact 14-FCQFN (2x3) supplier device package further aids in space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range for the MP2308GD-Z is from 4.75V to 18V.
The MP2308GD-Z can provide a maximum output current of 4A.
The MP2308GD-Z has an adjustable output type.
The operating temperature range for the MP2308GD-Z is -40°C to 125°C (TJ).
The MP2308GD-Z is supplied in a 14-PowerVFQFN package.
