| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30,642 pcs
|
30642 pcs | On Request | 1 | On Request | On Request | 1618+ | On Request | On Request | |
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,589 pcs
|
1589 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,073 pcs
|
1073 pcs | On Request | 1 | On Request | On Request | 2020 | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The MP2229GQ-Z from Monolithic Power Systems is a high-performance switching voltage regulator designed for step-down (buck) conversion. This device features a synchronous rectification topology, enabling efficient power conversion.
Key electrical specifications include a maximum output current of 6A and an adjustable output voltage. The regulator operates with an input voltage starting at 4.5V and supports a wide switching frequency range from 300kHz to 1.8MHz. The operating temperature range is -40°C to 125°C (TJ).
Packaged in a compact 14-QFN (3x3) surface-mount configuration, the MP2229GQ-Z is suitable for space-constrained applications. It is supplied on a reel, with a factory pack quantity of 5000 units. The device is designed for applications requiring efficient voltage regulation and high current delivery.
Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status. These attributes make the MP2229GQ-Z a reliable choice for various electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MP2229GQ-Z provides a maximum output current of 6A.
The MP2229GQ-Z operates with an input voltage starting at 4.5V.
The operating temperature range for the MP2229GQ-Z is -40°C to 125°C (TJ).

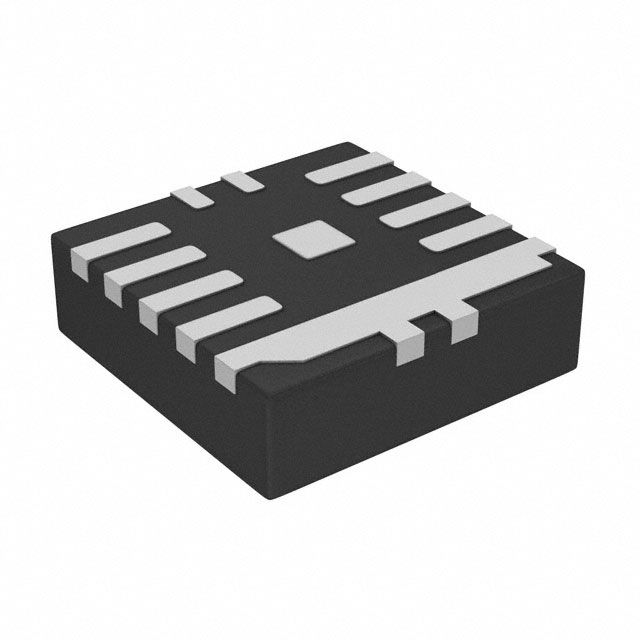

The MP2229GQ-Z is available in a 14-QFN (3x3) package.
The MP2229GQ-Z utilizes a Buck topology.
Yes, the MP2229GQ-Z features synchronous rectification.
