MP2015AGG-Z The Monolithic Power Systems MP2015AGG-Z is a linear voltage regulator with an adjustable positive output. It operates with a 15V input and can supply up to 150mA.
Mfr Part #:

MP2015AGG-Z

Available from 3 distributors
Mfr Name: Monolithic Power Systems
Monolithic Power Systems
The Monolithic Power Systems MP2015AGG-Z is a linear voltage regulator with an adjustable positive output. It operates with a 15V input and can supply up to 150mA.
✓ Total Stock: 17,164 pcs
$ Price Range: $0.28

MP2015AGG-Z Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
6,216 pcs
On Request
6216 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
5,477 pcs
On Request
5477 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
5,471 pcs
On Request
5471 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MP2015AGG-Z Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Current
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Type
PSRR
Supplier Device Package
Voltage
Voltage Dropout (Max)
View Similar Products (0)

MP2015AGG-Z Description

Short technical summary and product information.

The MP2015AGG-Z from Monolithic Power Systems is a linear voltage regulator designed for adjustable positive output voltage applications. It features a 15V input capability and can deliver a continuous current of up to 150mA. The device operates with a low quiescent current of 35 µA and offers a PSRR of 55dB at 100kHz.

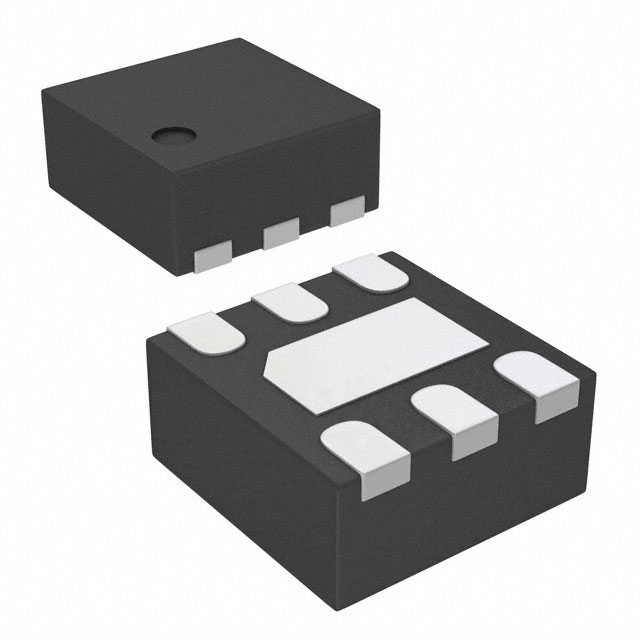

This regulator is suitable for applications requiring stable voltage regulation. It includes an Enable control feature for power management. The operating temperature range is from -40°C to 125°C (TJ), making it robust for various environmental conditions. The MP2015AGG-Z is available in a compact 6-QFN (2x2) package, specifically a 6-VDFN Exposed Pad, designed for surface mounting.



Key electrical characteristics include a voltage dropout of 1.1V at 150mA. The device is RoHS3 compliant, has an MSL rating of 1, and is REACH unaffected, though these compliance statuses are unverified.

MP2015AGG-Z Quick Information

Product Type: Linear Voltage Regulator
Canonical Name: MP2015AGG-Z Linear Voltage Regulator
Subcategory: Linear

MP2015AGG-Z Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MP2015AGG-Z Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

MP2015AGG-Z Features

  • Adjustable positive output voltage.
  • 15V maximum input voltage.
  • 150mA output current capability.
  • Surface mountable 6-QFN package.
  • Low quiescent current of 35 µA.

MP2015AGG-Z Applications

  • Ideal for portable electronic devices.
  • Suitable for battery-powered systems.
  • Used in power management circuits.
  • Applications requiring adjustable voltage.

MP2015AGG-Z FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage range of the MP2015AGG-Z?

The MP2015AGG-Z provides an adjustable positive output voltage up to 15V.

What is the dropout voltage of the MP2015AGG-Z?

The maximum dropout voltage is 1.1V at 150mA load.

What is the quiescent current of the MP2015AGG-Z?

The quiescent current is 35 µA.

What is the operating temperature range of the MP2015AGG-Z?

The operating junction temperature range is -40°C to 125°C.

What is the PSRR of the MP2015AGG-Z?

The PSRR is 55 dB at 100 kHz.

What package is the MP2015AGG-Z available in?

The device is offered in a 6-QFN package with exposed pad.

Does the MP2015AGG-Z have an enable control?

Yes, it includes an enable control feature.
