| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,577 pcs
|
7577 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
3,945 pcs
|
3945 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Supplier Device Package | |
| Voltage | |
| Voltage Dropout (Max) |

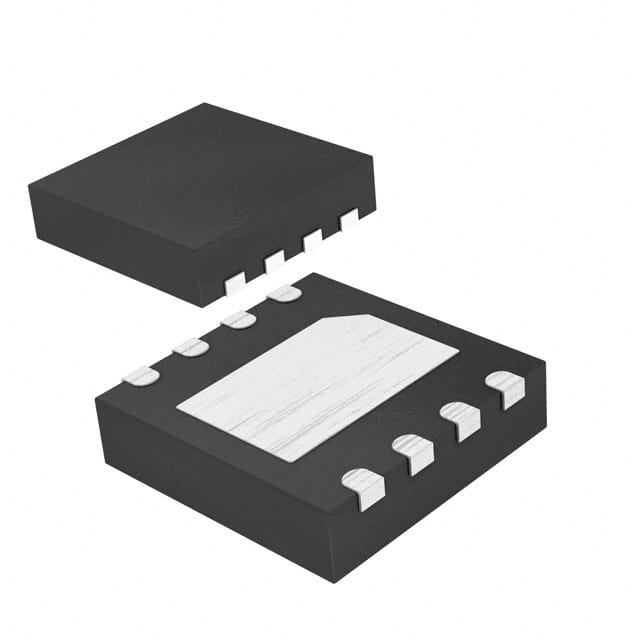

The Monolithic Power Systems MP2013AGQ-Z is a linear voltage regulator designed for positive adjustable output. It offers a maximum output voltage of 15V and can supply up to 150mA with a dropout voltage of 0.85V. The device operates within a temperature range of -40°C to 125°C (TJ).
This regulator is housed in an 8-VDFN exposed pad package, suitable for surface mounting. Key features include over-current and over-temperature protection, along with an enable control function. Its quiescent current is rated at 9 µA, making it suitable for power-sensitive applications.
The MP2013AGQ-Z provides a PSRR of 58dB to 41dB across a frequency range of 100Hz to 1kHz. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 125°C (junction temperature).
8-QFN (3x3mm) with exposed pad.
The output voltage is adjustable up to 15V.
9 µA.
0.85V maximum at 150mA load.
Over-current and over-temperature protection.
58dB to 41dB from 100Hz to 1kHz.
