| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
892 pcs
|
892 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Supplier Device Package | |
| Voltage | |
| Voltage Dropout (Max) |

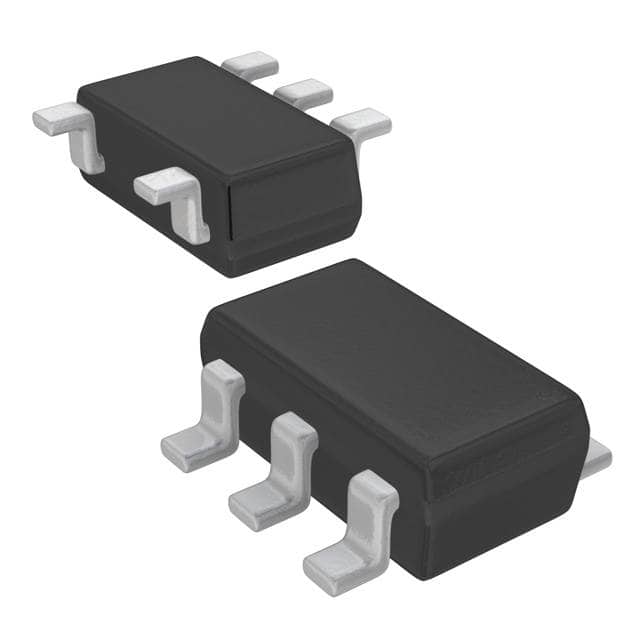

The MP2009EE-1.8-LF-Z from Monolithic Power Systems is a linear voltage regulator IC. It provides a fixed positive output voltage of 1.8V with a maximum output current of 120mA. The device features a low quiescent current of 90 µA, making it suitable for power-sensitive applications.
Key electrical characteristics include an input voltage range up to 6V, a typical dropout voltage of 0.172V at 120mA, and protection features such as over current and over temperature shutdown. The PSRR is rated between 78dB and 55dB across a frequency range of 1kHz to 100kHz.
This regulator is housed in a compact SC-70-5 package, designed for surface mounting. The operating temperature range is -20°C to 85°C. It also includes an enable control feature for power management.
Compliance information indicates RoHS3 compliance and Moisture Sensitivity Level 1 (MSL 1). REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is fixed at 1.8V.
The operating temperature range is -20°C to 85°C.
The package is SC-70-5 (5-TSSOP, SC-70-5, SOT-353).
The typical dropout voltage is 0.172V at 120mA load.
The quiescent current is 90 µA.
It includes over-current and over-temperature protection.
Yes, it has an enable control pin.
