| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,309 pcs
|
9309 pcs | On Request | 1 | On Request | On Request | 1546+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Input Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| PSRR | |
| Package / Case | |
| Protection Features | |
| Quiescent Current | |
| Supplier Device Package |

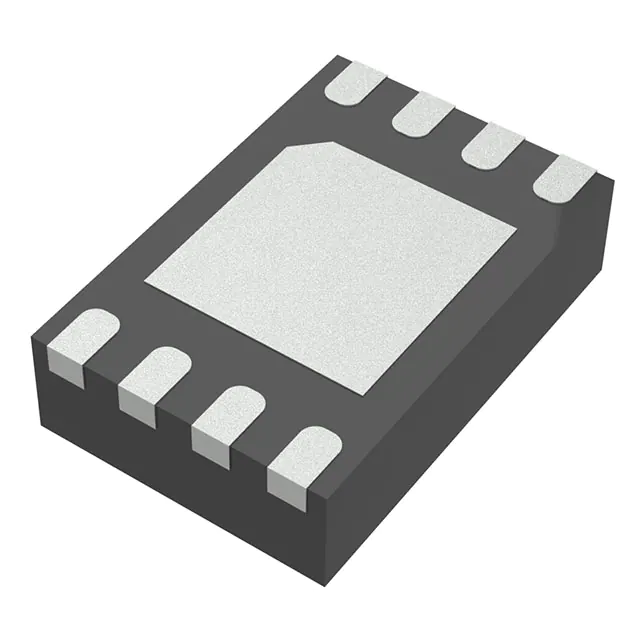

The MP2005DD-LF-Z is a linear voltage regulator IC manufactured by Monolithic Power Systems Inc. This component offers a positive adjustable output configuration with a maximum output current of 800mA. It accepts an input voltage up to 5.5V and provides an adjustable output voltage ranging from 0.5V to 4V.
The device features a low quiescent current of 10 µA and a voltage dropout of 0.09V at 800mA. Protection features include over-current and over-temperature protection, along with an enable control feature. The operating temperature range is -40°C to 85°C.
Packaged in an 8-QFN (2x3) footprint, the MP2005DD-LF-Z is designed for surface mounting. Its detailed description indicates it is a ROHS3 Compliant component with a Moisture Sensitivity Level (MSL) of 1 (Unlimited) and REACH Unaffected status.
This voltage regulator is suitable for various power management applications requiring stable and adjustable voltage regulation. Its compact package and surface-mount capability make it ideal for space-constrained designs.
The maximum input voltage is 5.5V.
The output voltage is adjustable from 0.5V to 4V.
The output current is 800mA.
The maximum dropout voltage is 0.09V at 800mA load.
The quiescent current is 10 µA.
The operating temperature range is -40°C to 85°C.
The package is 8-TFDFN exposed pad (8-QFN 2x3mm).
