| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,173 pcs
|
4173 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Mounting Type | |
| Number of Outputs | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Output Voltage | |
| Power Dissipation | |
| Protection Features | |
| Quiescent Current | |
| Supplier Device Package | |
| Voltage | |
| Voltage Dropout (Max) |
The MP2002AGD-Z from Monolithic Power Systems is a linear voltage regulator designed for power management applications. It offers an adjustable output voltage from 0.5V to 5V, capable of delivering up to 500mA of current. The device accepts an input voltage range of 1.35V to 6.5V, making it suitable for various power supply designs.
Key electrical specifications include a low dropout voltage of 0.29V at 500mA (typical) and a quiescent current of 6µA. It features line regulation of 0.005%/V and load regulation of 0.001%/mA, ensuring stable output performance. Protection features include over-current and over-temperature shutdown.

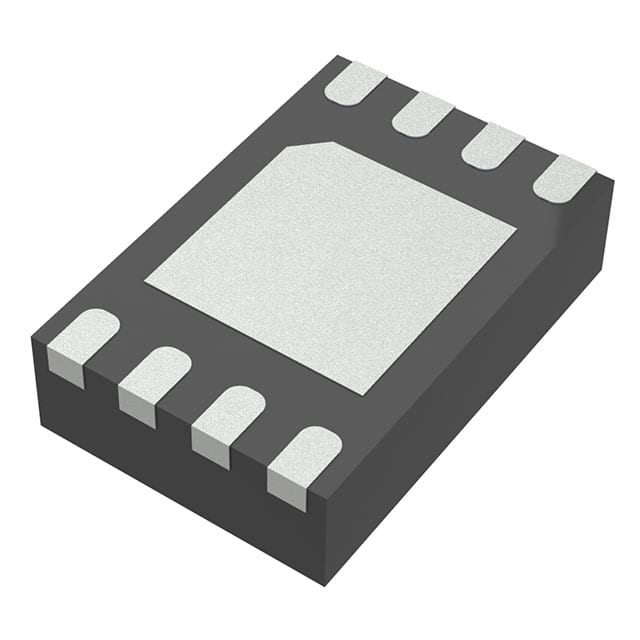

This regulator is housed in an 8-QFN (2x3) package, with the supplier device package specified as 8-TFDFN Exposed Pad. It is designed for surface mount applications and operates within a temperature range of -40°C to 125°C (TJ). The device is RoHS3 Compliant and REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum input voltage is 1.35V and the maximum is 6.5V.
The adjustable output voltage range is from 0.5V to 5V.
The maximum output current is 500mA.
The maximum dropout voltage is 0.29V at 500mA output current.
The quiescent current is 6 µA.
The operating junction temperature range is -40°C to +125°C.
It is available in an 8-QFN (2x3mm) package with an exposed pad.
