| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,000 pcs
|
18000 pcs | On Request | 1 | On Request | On Request | 0543+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Function | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Tape & Reel | |
| Topology | |
| Voltage |
The Monolithic Power Systems MP1580HP-LF is an integrated circuit designed for DC to DC power conversion. This adjustable buck converter features a maximum output current of 2A and operates as a step-down regulator.
Key electrical specifications include an input voltage starting at 4.75V and a switching frequency of 380kHz. The device supports a positive output configuration and utilizes a synchronous rectifier for improved efficiency. Its adjustable output capability allows for flexible voltage regulation in various designs.

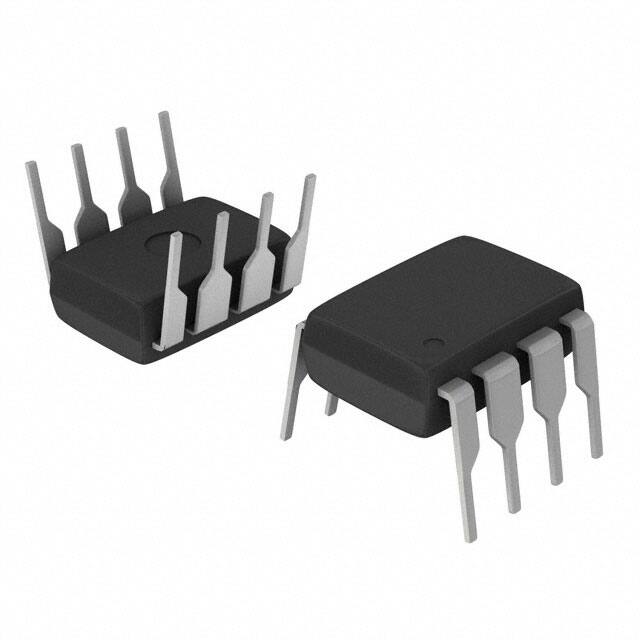

Packaged in an 8-PDIP through-hole component, the MP1580HP-LF is designed for easy integration into printed circuit boards. It operates within an ambient temperature range of -40°C to 125°C (TJ), making it suitable for demanding environmental conditions. The component is RoHS3 compliant, indicating adherence to environmental standards.
This regulator is ideal for applications requiring efficient and adjustable voltage conversion. Its through-hole mounting and robust operating temperature range make it a versatile choice for power supply designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2A.
380kHz.
-40°C to 125°C.
8-DIP (0.300", 7.62mm) through-hole.
Yes, the output voltage is adjustable.
Yes.
