| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
224 pcs
|
224 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Tape & Reel | |
| Type | |
| Width |

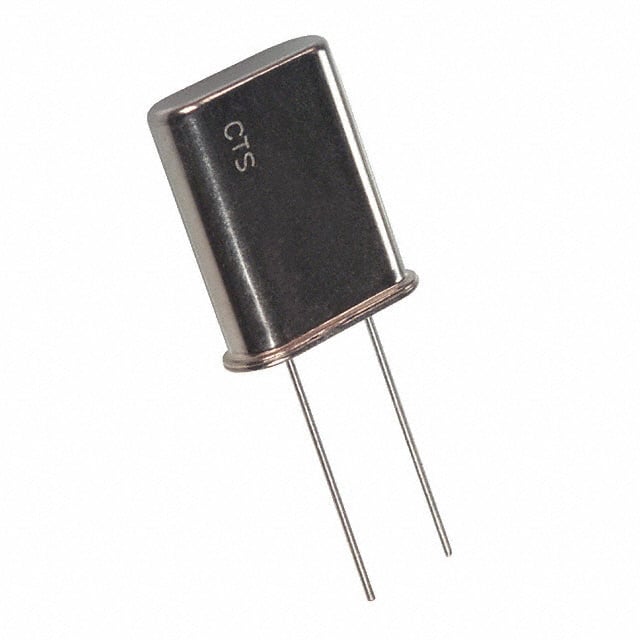

The MP080A is a 8 MHz fundamental mode quartz crystal from the CTS MP Series. It is housed in a standard HC-49/U metal through-hole package, making it suitable for prototyping and low-volume production.
Key electrical specifications include a frequency tolerance of ±30ppm, frequency stability of ±50ppm over the -20°C to +70°C operating temperature range, and a maximum equivalent series resistance (ESR) of 35 ohms. The crystal requires a 20pF load capacitance for proper oscillation.
Typical applications include wireless communications, broadband access, FPGA and microcontroller clock generation, computer peripherals, test and measurement equipment, and consumer electronics. The MP Series is designed for commercial and industrial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.01 | $1.01 |
| 10+ | $0.87 | $0.87 |
| 25+ | $0.85 | $0.85 |
| 100+ | $0.72 | $0.72 |
| 300+ | $0.67 | $0.67 |
| 500+ | $0.65 | $0.65 |
| 1,000+ | $0.65 | $0.65 |
| 2,500+ | $0.60 | $0.60 |
| 5,000+ | $0.57 | $0.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MP080A operates at 8 MHz.
The frequency tolerance is ±30ppm.
The required load capacitance is 20pF.
The maximum equivalent series resistance is 35 ohms.
The operating temperature range is -20°C to +70°C.
It comes in an HC-49/U through-hole package.
The part is listed as RoHS3 Compliant, but this status is unverified and should be confirmed from official documentation.
