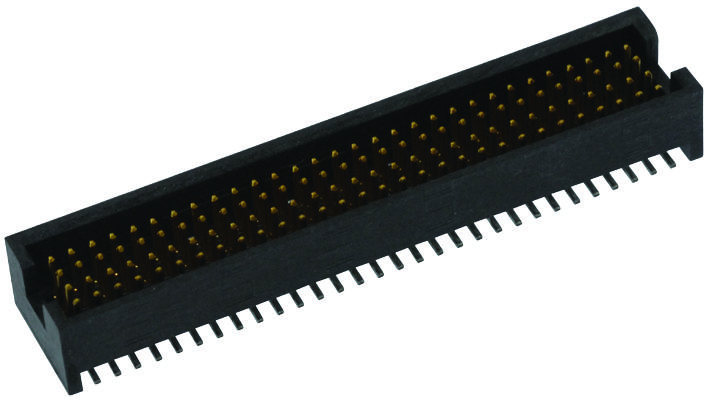

MOLC-130-M1-S-Q-LC A 120-position, 4-row, 1.27mm pitch shrouded header with board lock, surface mount and through-hole termination, rated for 2.6A per contact.
Mfr Part #:

MOLC-130-M1-S-Q-LC

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
A 120-position, 4-row, 1.27mm pitch shrouded header with board lock, surface mount and through-hole termination, rated for 2.6A per contact.
✓ Total Stock: 4 pcs
$ Price Range: $32.91 - $49.82

MOLC-130-M1-S-Q-LC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request NDC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MOLC-130-M1-S-Q-LC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

MOLC-130-M1-S-Q-LC Description

Short technical summary and product information.

The Samtec MOLC-130-M1-S-Q-LC is a 120-position, 4-row header designed for board-to-board applications. It features a 1.27mm (0.050") pitch and a shrouded 4-wall design for protection. The connector supports both surface mount and through-hole soldering, with a board lock for secure attachment. Contacts are made of phosphor bronze with a tin finish (30.0µin) and are rated for 2.6A per contact. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, operating from -55°C to 125°C. This header is suitable for high-density PCB interconnects where reliable mechanical and electrical performance is required.

MOLC-130-M1-S-Q-LC Quick Information

Product Type: Header, Male Pins
Series: MOLC
Canonical Name: Samtec MOLC-130-M1-S-Q-LC Header, 120 Positions, 1.27mm Pitch, Shrouded, Board Lock
Subcategory: Male Pins

MOLC-130-M1-S-Q-LC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MOLC-130-M1-S-Q-LC Estimated Pricing

Qty Low High
1+ $49.82 $49.82
10+ $46.62 $46.62
26+ $46.08 $46.08
52+ $39.94 $39.94
104+ $36.91 $36.91
260+ $32.91 $32.91

Estimated market price range - modelled values for guidance only, not live distributor offers.

MOLC-130-M1-S-Q-LC Features

  • Offers 120 positions in 4 rows.
  • Features 1.27mm pitch for compact designs.
  • Includes a shrouded 4-wall design.
  • Equipped with board lock for secure mounting.
  • Uses tin-plated phosphor bronze contacts.

MOLC-130-M1-S-Q-LC Applications

  • Designed for board-to-board interconnections.
  • Suitable for high-density pin count applications.
  • Provides secure locking with board lock feature.

MOLC-130-M1-S-Q-LC FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

It has 120 positions arranged in 4 rows.

What is the pitch of this connector?

The pitch is 1.27mm (0.050").

What is the current rating for each contact?

Each contact is rated for 2.6A.

What mounting options are available?

It supports both Surface Mount and Through Hole mounting.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What contact material is used?

The contacts are made of phosphor bronze with a tin finish.

Is the header shrouded?

Yes, it is shrouded with a 4-wall design.
